BRACKETS

  • TRUCKER MOUNT BRACKETS - TRM SERIES:
    Strong brackets dedigned for the installation of CB antennas on trucks. Made of high-strength steel, laser-cut and electropolished, they keep their robust characteristics unchanged allowing easy installation and simple calibration of the antenna on the truck.
    DOWNLOAD INSTALLATION MANUAL

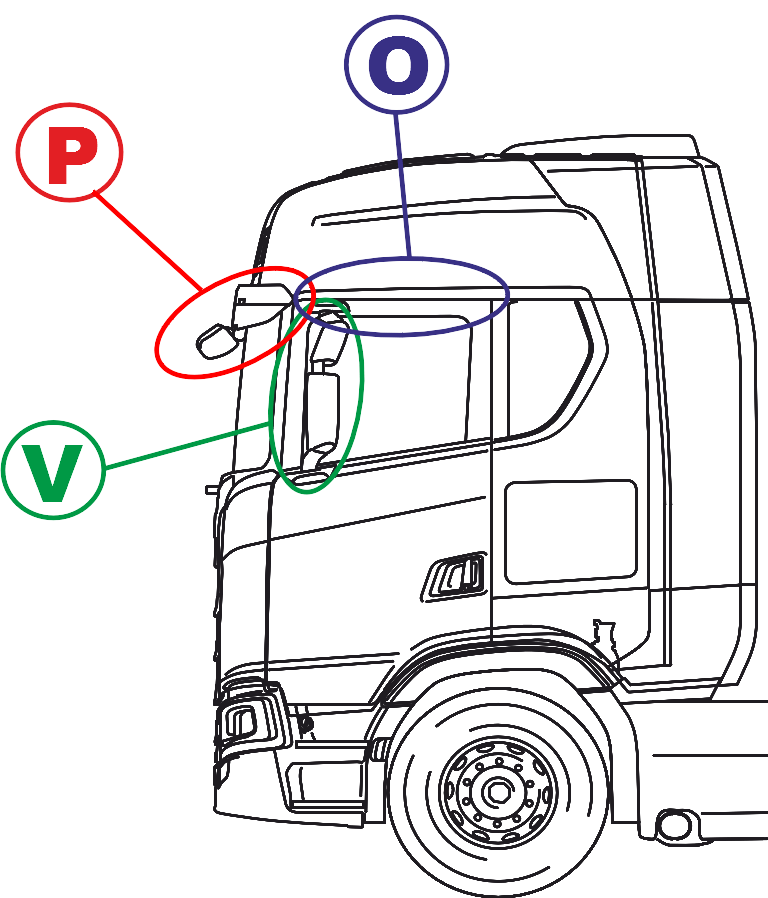

    Bracket positions

    Mounting Materials Suggested for:

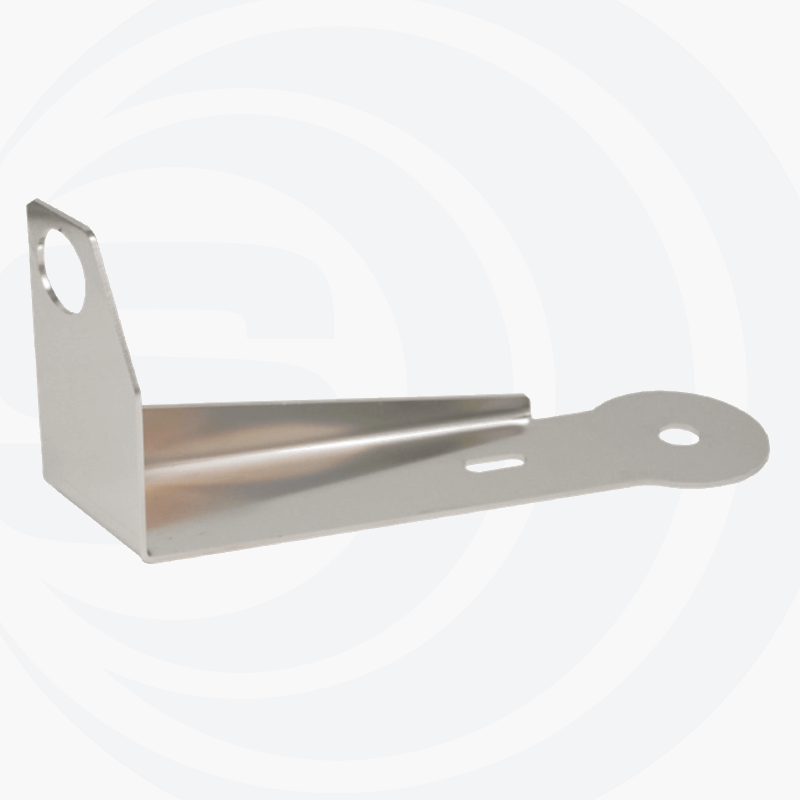

    TRM-3 (P/N: 2522003.00)
    UPGRADED
    TRM-3 For sun visor upright
    Position (P)
    3mm electropolished stainless steel
    SCANIA
    NEW-R, SUPER-R, STREAMLINE, SERIE 4

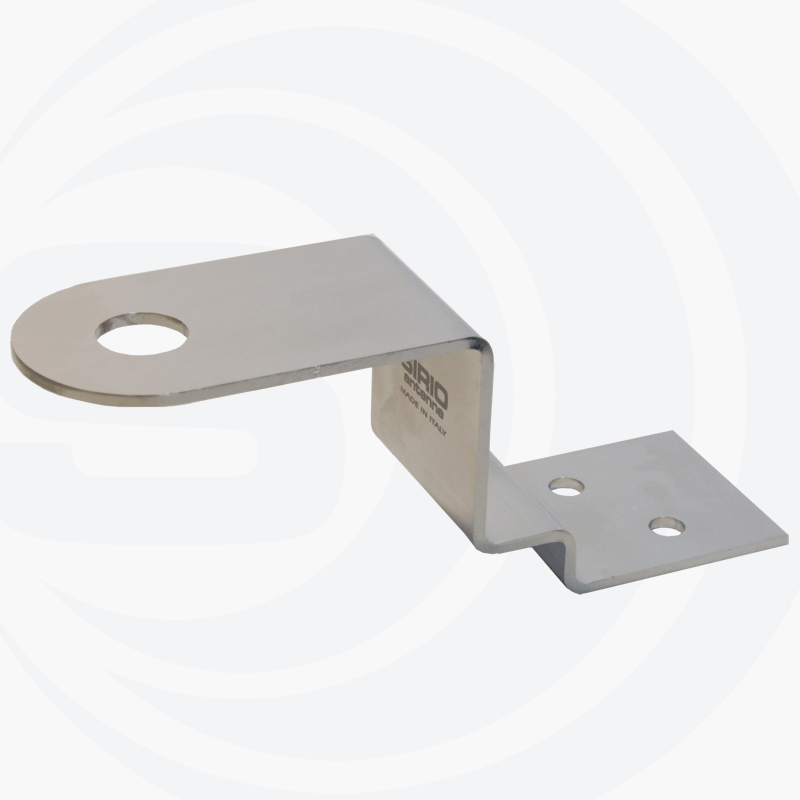

    TRM-4 (P/N: 2522103.00) TRM-4 Driver's side, above the door by rivets
    Position (O)
    2.5mm electropolished stainless steel
    MAN
    TGX-EURO6, TGA

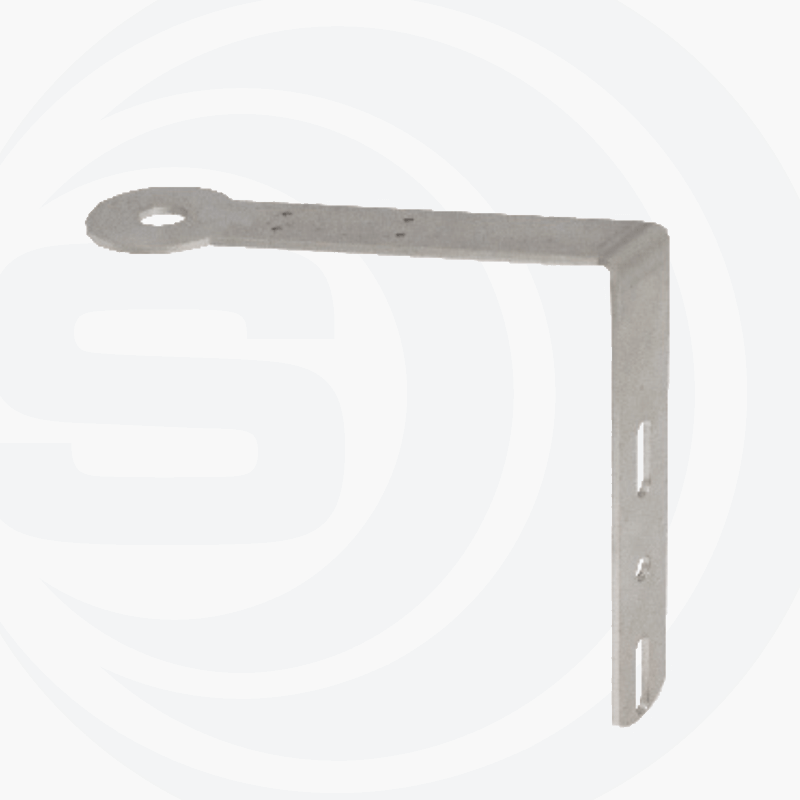

    TRM-6 (P/N: 2522203.00) UPGRADED TRM-6 For sun visor upright
    Position (P)
    3mm electropolished stainless steel
    DAF
    XF SERIE 95/105/106 (M.Y. 2013-2020)
    SCANIA
    Universal
    RENAULT
    Series T & CONFORT
    MERCEDES BENZ
    Universal

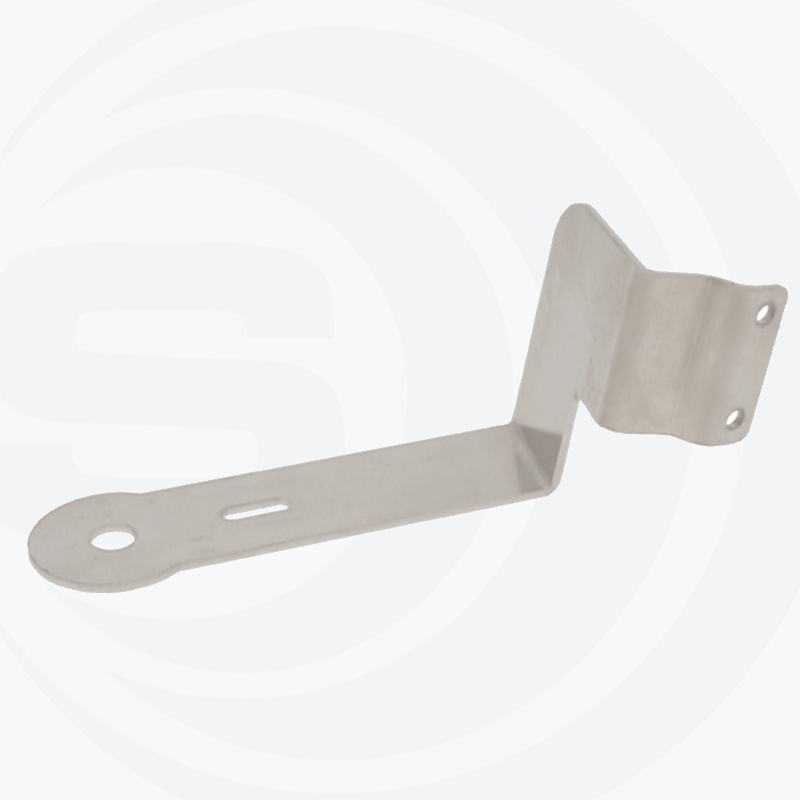

    TRM-7 (P/N: 2522303.00)
    NEW
    TRM-7 For vertical upright driver door
    Position (V)
    3mm electropolished stainless steel
    RENAULT
    SERIE T, T-HIGH

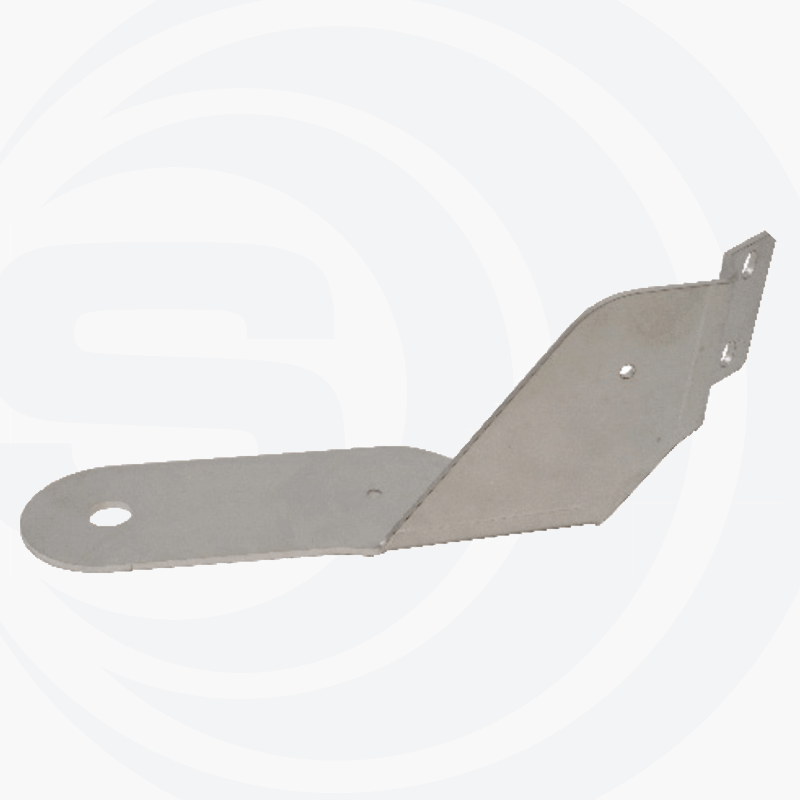

    TRM-12 (P/N: 2522403.00)
    NEW
    TRM-12 For vertical upright driver door
    Position (V)
    3mm electropolished stainless steel
    IVECO
    S-WAY, HI-WAY, S-WAY-CNG/LNG

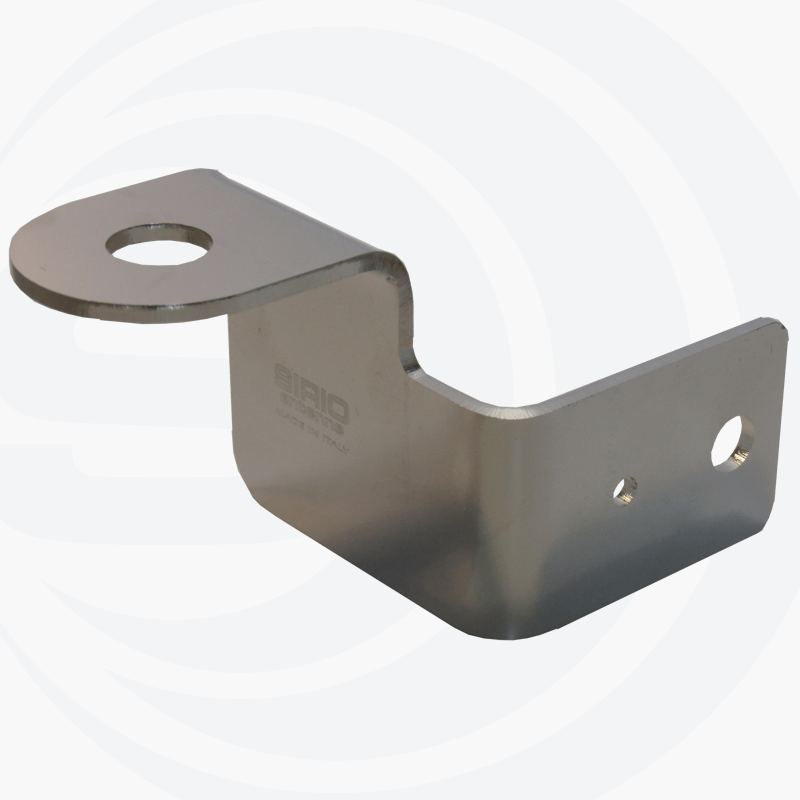

    TRM-13 (P/N: 2522503.00) TRM-13 Second upright of the sun visor on the driver's side
    Position (P)
    3mm electropolished stainless steel
    VOLVO
    FH 1st Series

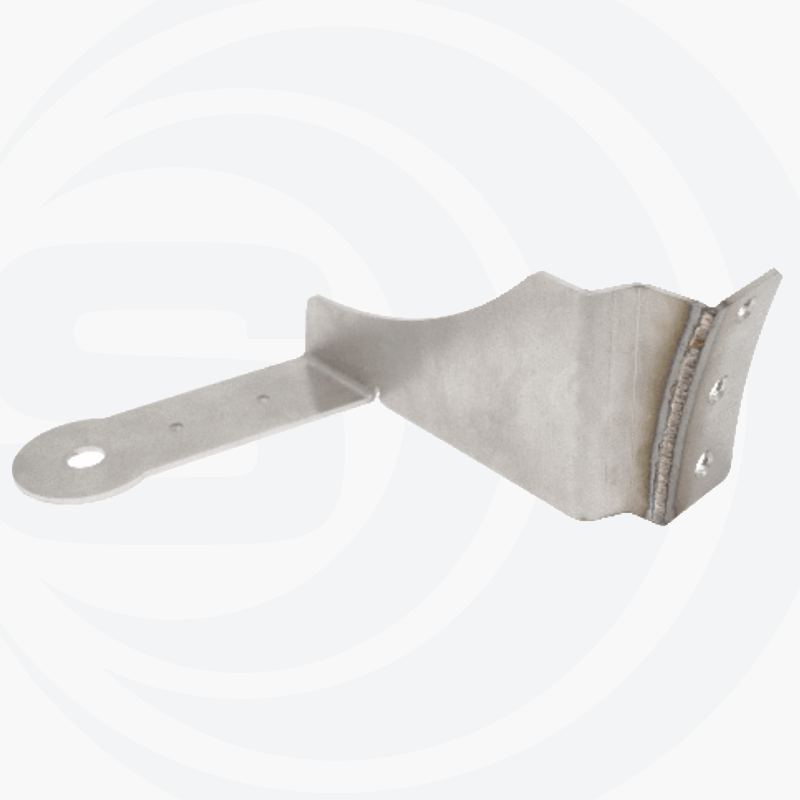

    TRM-19 (P/N: 2522603.00)
    NEW
    TRM-19 For vertical upright driver door
    Position (V)
    3mm electropolished stainless steel
    DAF
    XF SERIE 95/105/106, XF EURO6 (M.Y. 2013-2020)

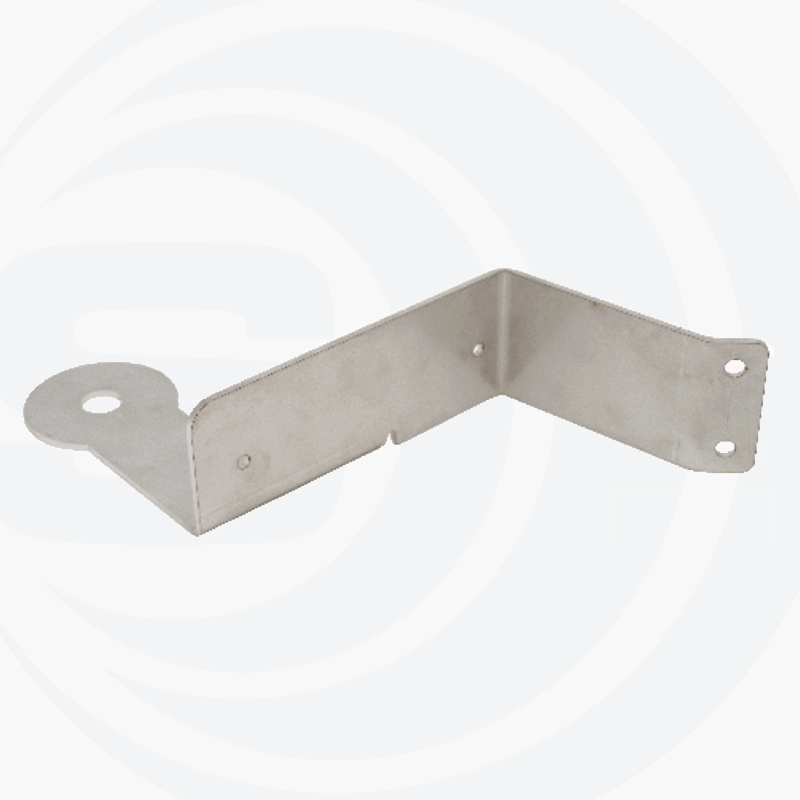

    TRM-22 (P/N: 2522703.00)
    UPGRADED
    TRM-22 For vertical upright driver door
    Position (V)
    3mm electropolished stainless steel
    IVECO
    STRALIS, EUROCARGO, CUBE

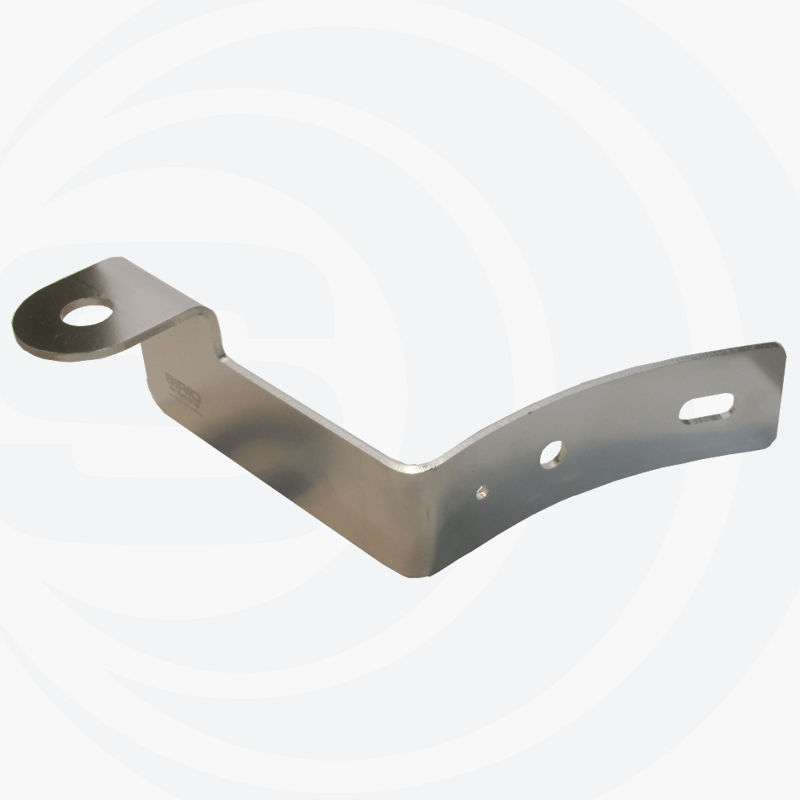

    TRM-23 (P/N: 2522803.00) TRM-23 First upright of the sun visor on the driver's side
    Position (P)
    3mm electropolished stainless steel
    VOLVO
    FH new Series

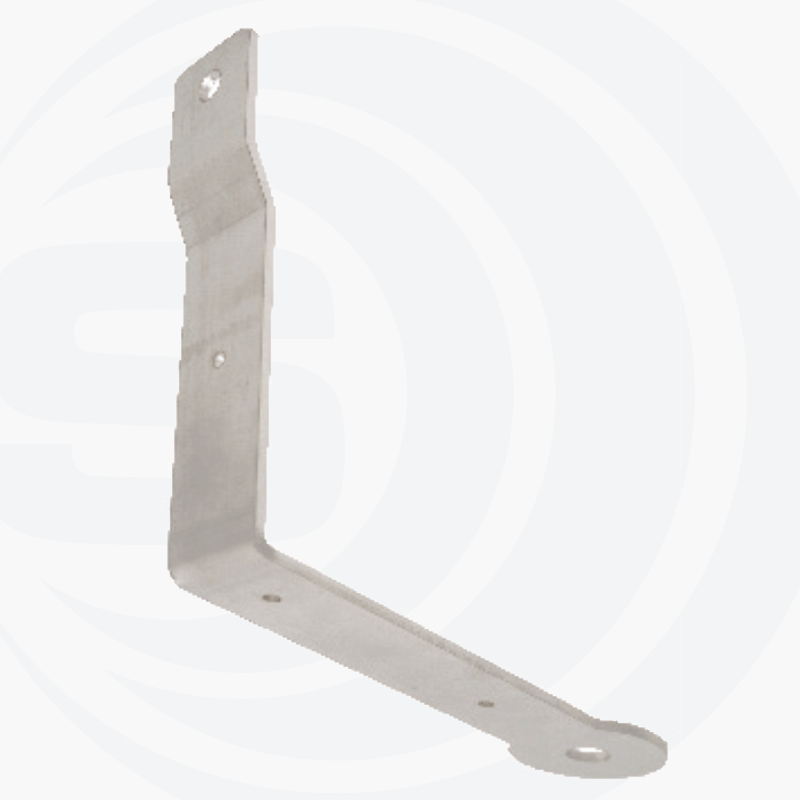

    TRM-31 (P/N: 2522903.00)
    NEW
    TRM-31 For sun visor upright
    Position (P)
    4mm electropolished stainless steel
    VOLVO
    FH 4 Series

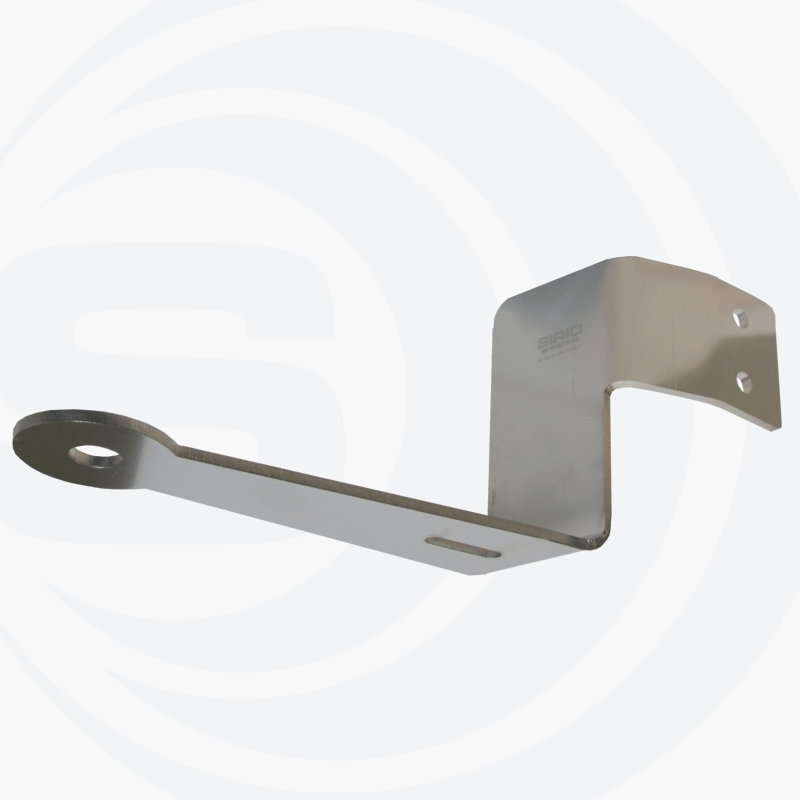

    TRM-33 (P/N: 2523003.00) TRM-33 Driver's side, vertical upright of the door by rivets
    Position (V)
    4mm electropolished stainless steel
    SCANIA
    Year 2017

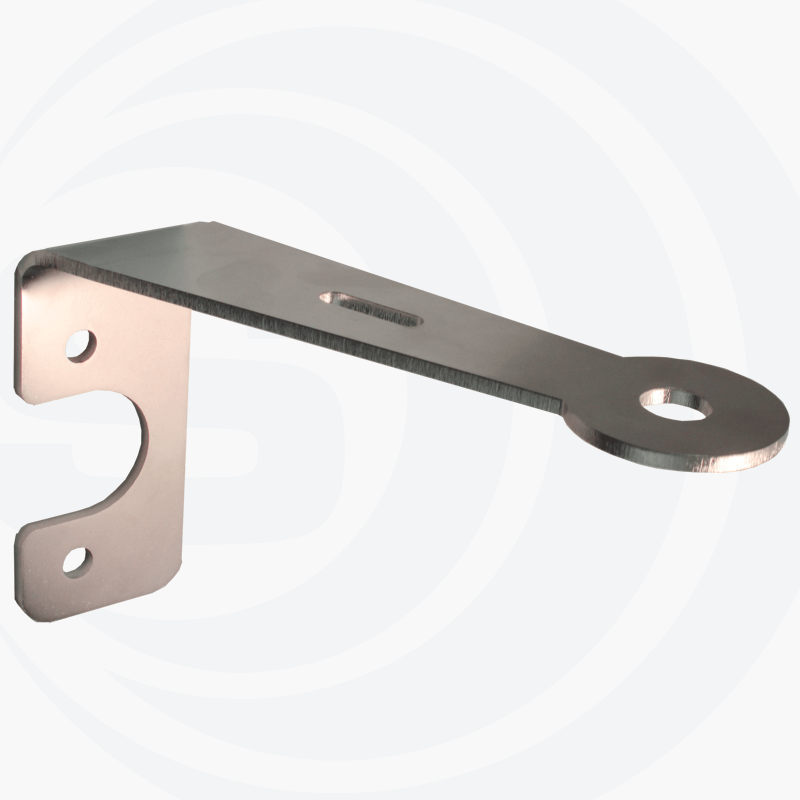

    TRM-42 (P/N: 2523103.00) TRM-42 Driver's side, above the first anchorage of sun visor
    Position (P)
    4mm electropolished stainless steel
    MERCEDES BENZ
    ACTROS 2016

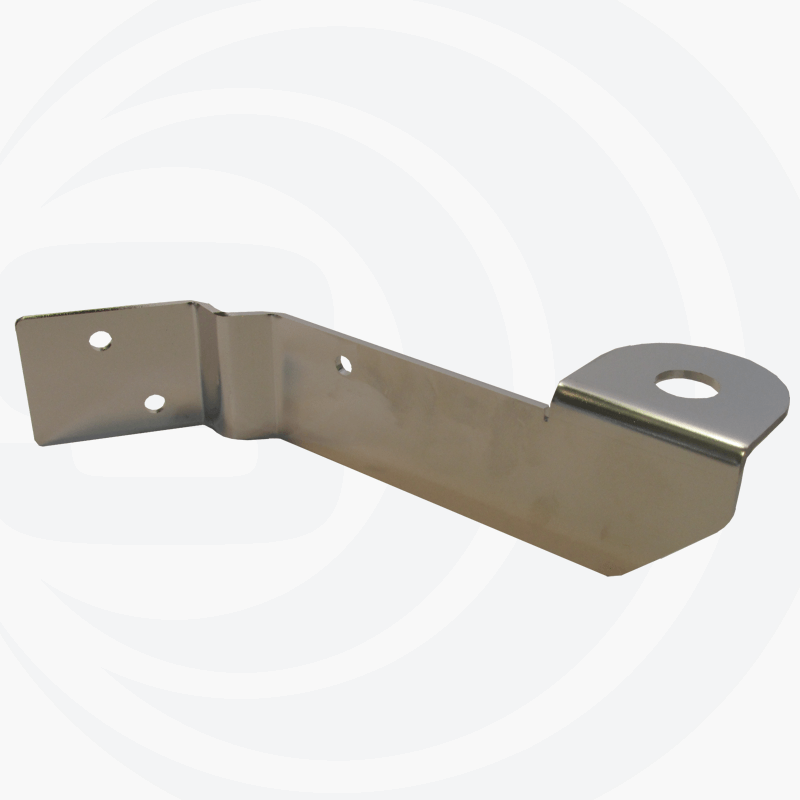

    TRM-52 (P/N: 2523203.00) TRM-52 Driver's side door, with the 2 screws and 2 rivets (enclosed) on the vertical upright
    Position (V)
    DOWNLOAD TRM-52 Istallation Manual
    2.5mm electropolished stainless steel
    DAF
    XF Series

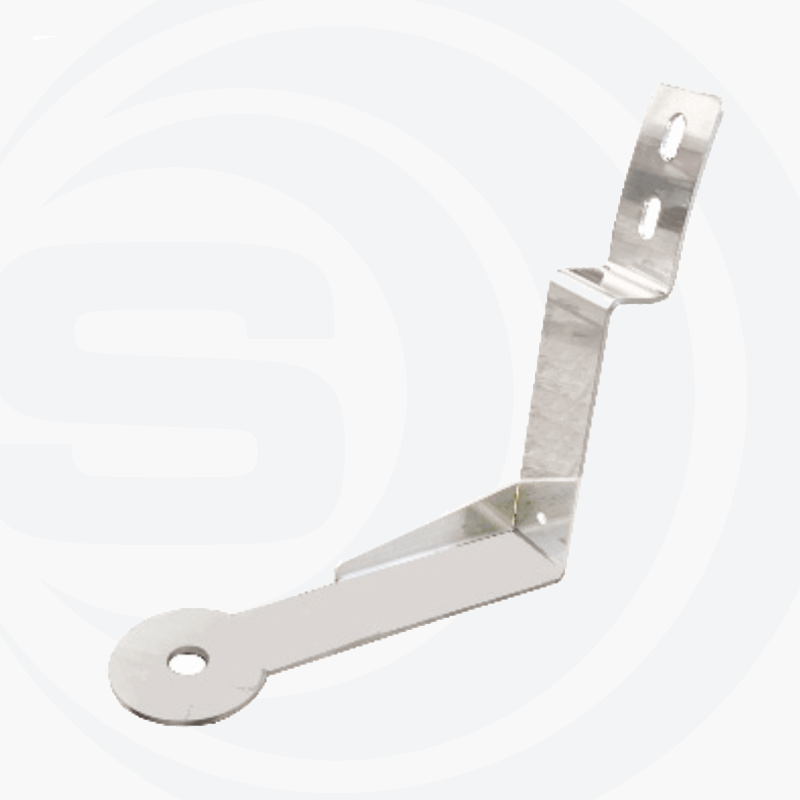

    TRM-53 (P/N: 2523403.00)
    NEW
    TRM-53 For sun visor upright
    Position (P)
    3mm electropolished stainless steel
    DAF
    SERIE XG, XG PLUS, SERIE XF M.Y.2022

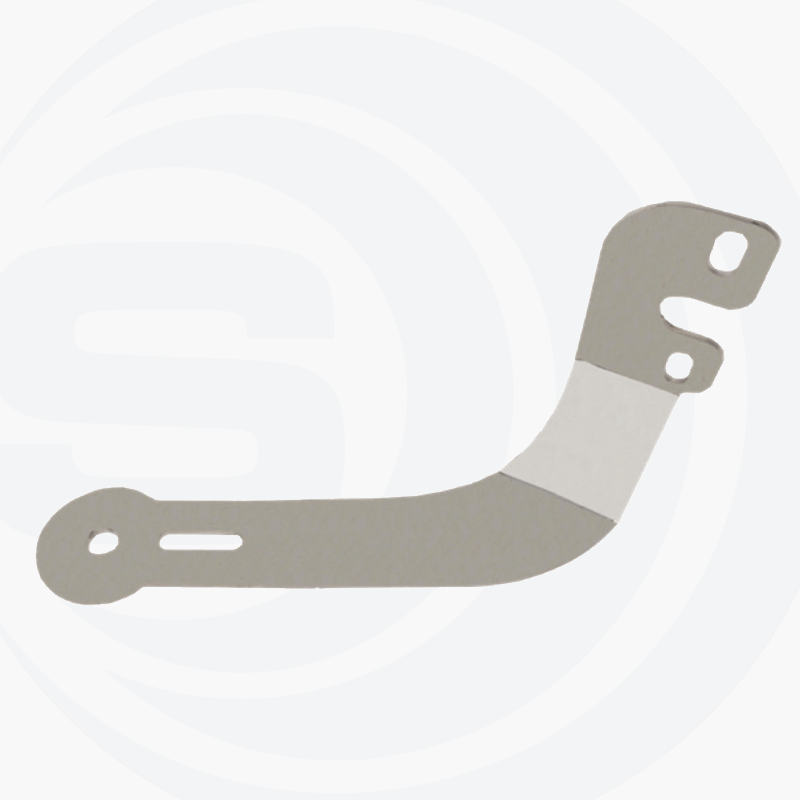

    TRM-61 (P/N: 2523503.00)
    NEW
    TRM-61 For vertical upright driver door
    Position (V)
    3mm electropolished stainless steel
    FORD
    SERIE F-MAX

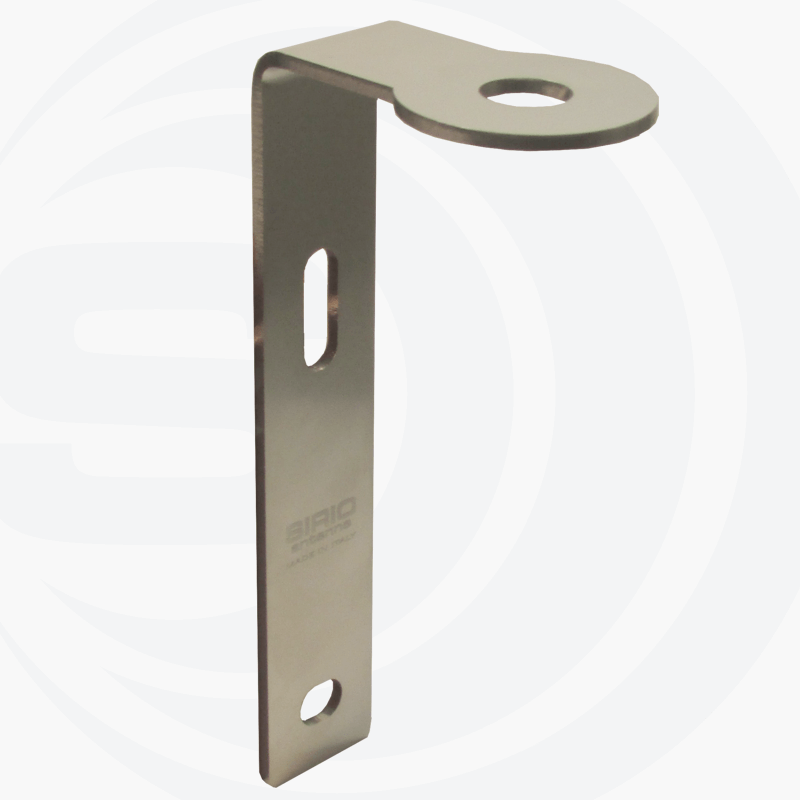

    TRM-111 (P/N: 2523303.00) TRM-111 Driver's side, above the first anchorage of sun visor
    Position (P)
    3mm electropolished stainless steel
    IVECO
    EUROCARGO
  • OTHER BRACKETS:
    Mounting Materials Suggested for:

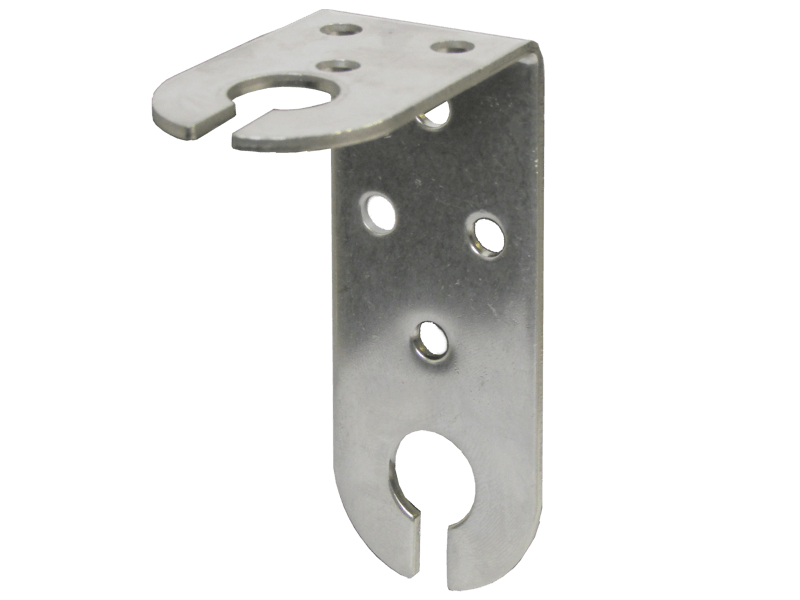

    M-1 (P/N: 2503503.00)

    M-1 with optional fixing set (P/N: 2503503.00/SA)
    M1 Universal bracket 2.5mm polished stainless steel -

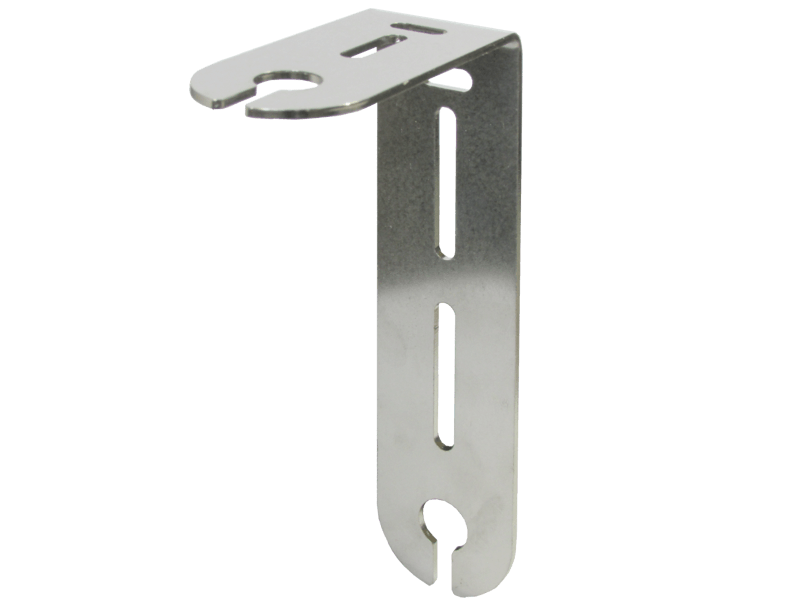

    M-2 (P/N: 2503203.00)

    M-2 with optional fixing set (P/N: 2503203.00/SA)
    M2 Universal bracket 2.5mm polished stainless steel -

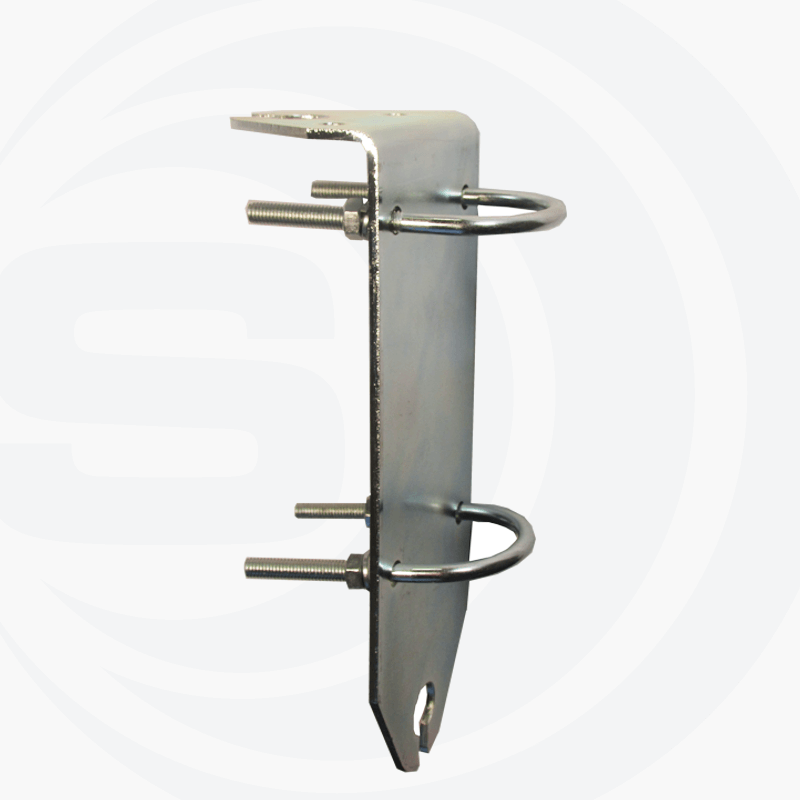

    M-3 (P/N: 2503604.00) M3 Universal bracket 3mm Zinc plated steel -

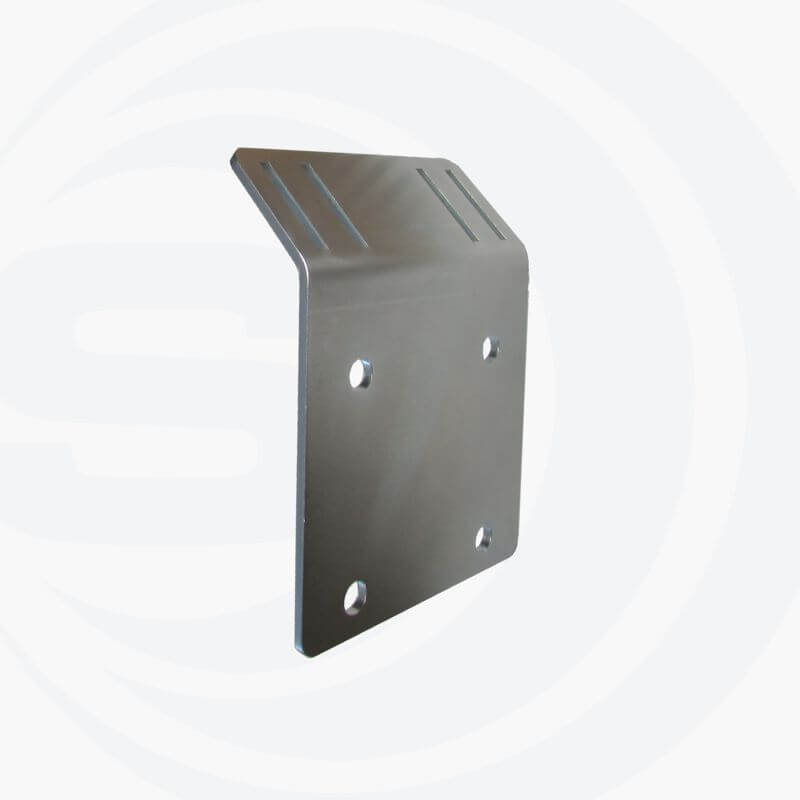

    M-4 (P/N: 2503704.00) M4 Universal bracket 2.5mm Galvanized steel -
    ASP-4L (P/N: 2504310.00) M4 Universal bracket Aluminium, Stainless steel -

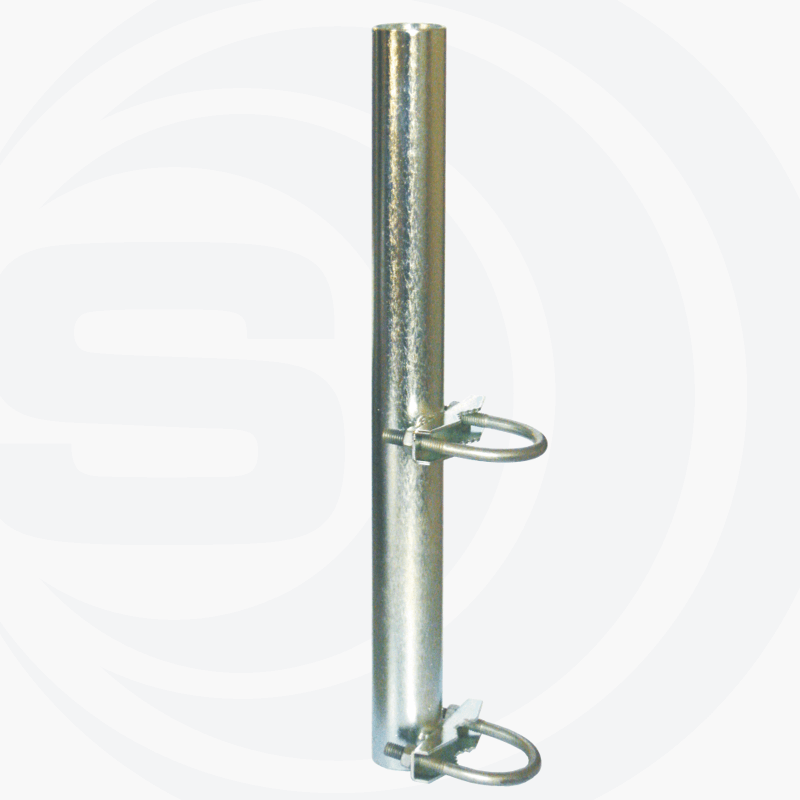

    FT-2 (P/N: 2510004.00) FT-2 Universal bracket Zinc plated steel -

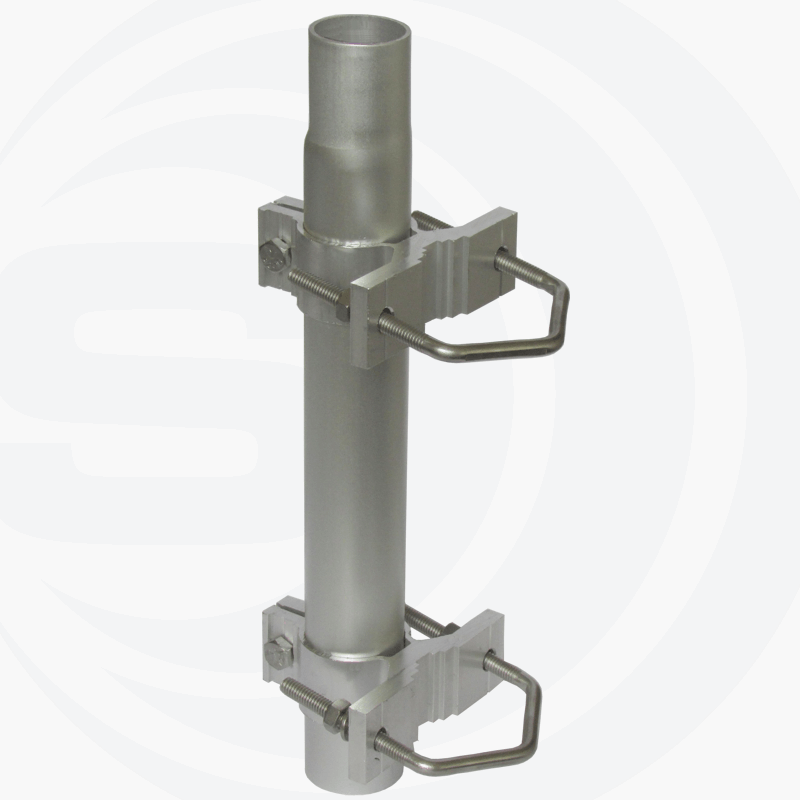

    FT-3 (P/N: 2511301.00) FT-3 Universal bracket Anodized Aluminium
    Stainless Steel
    -

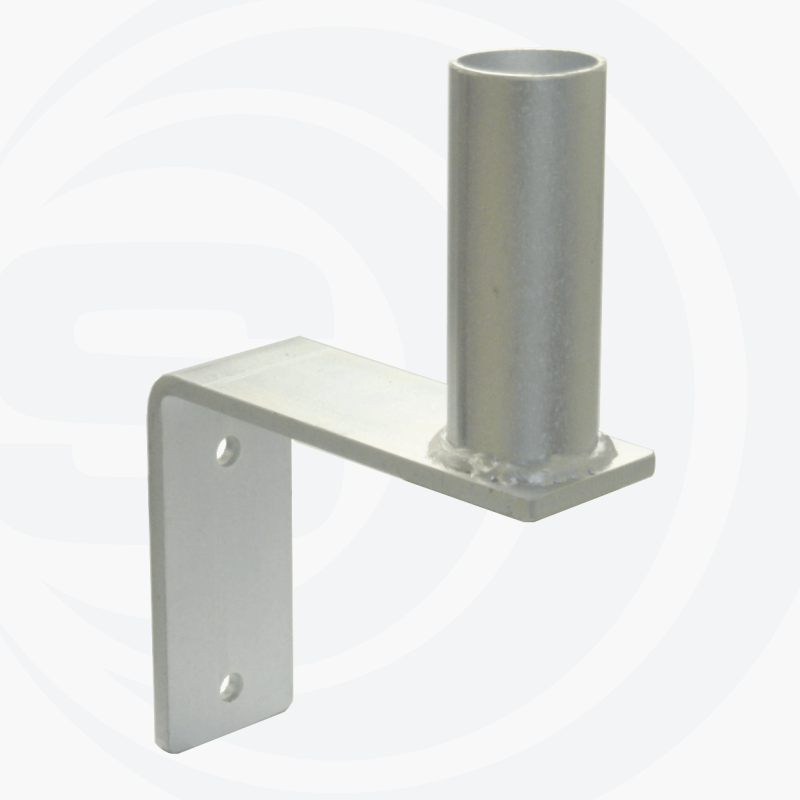

    FT-4 (P/N: 2513404.00) FT-4 Universal bracket Zinc plated steel -

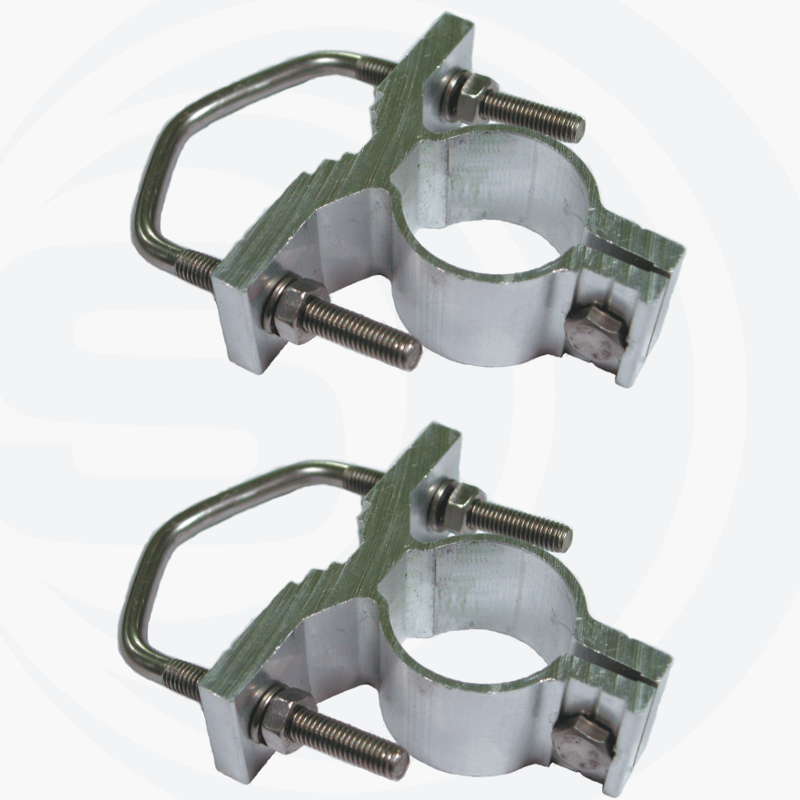

    FT-5 (P/N: 2519613.00) FT-5 Bracket for 32mm antenna fixing size Aluminium
    Stainless Steel
    -

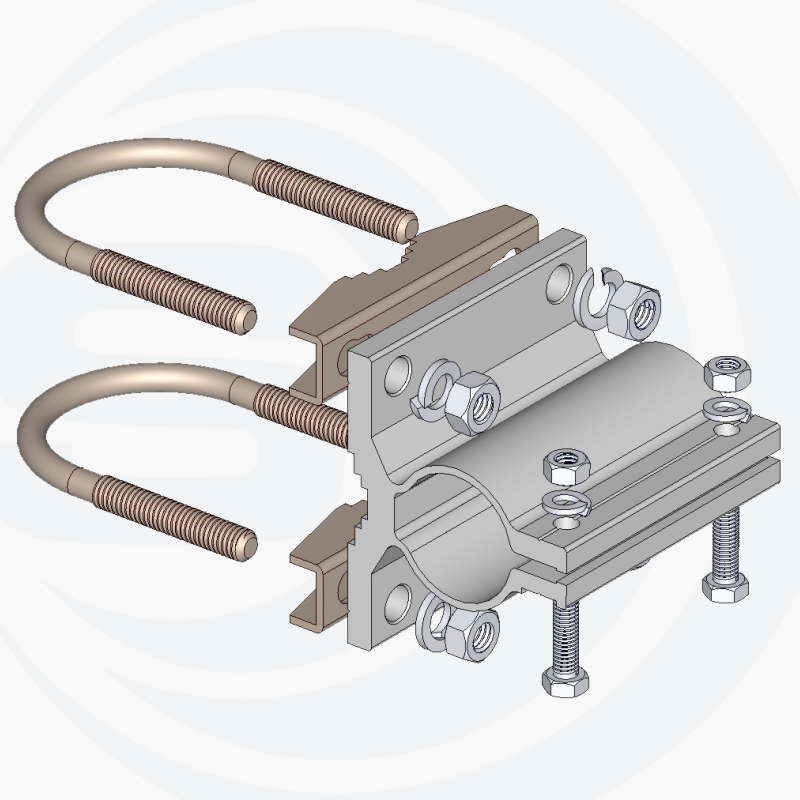

    FT-6 (P/N: 2519913.00) FT-6 Bracket for 32mm antenna fixing size Aluminium
    Stainless Steel
    -
