Gain-Master

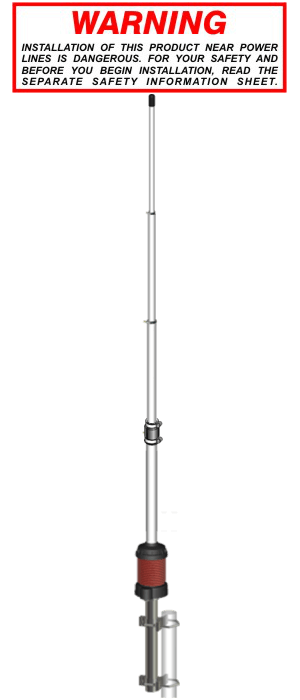

Hi-Tech fiberglass antenna - Center feed
Gain-Master Website

UP GRADED

Features:
2024 Update:

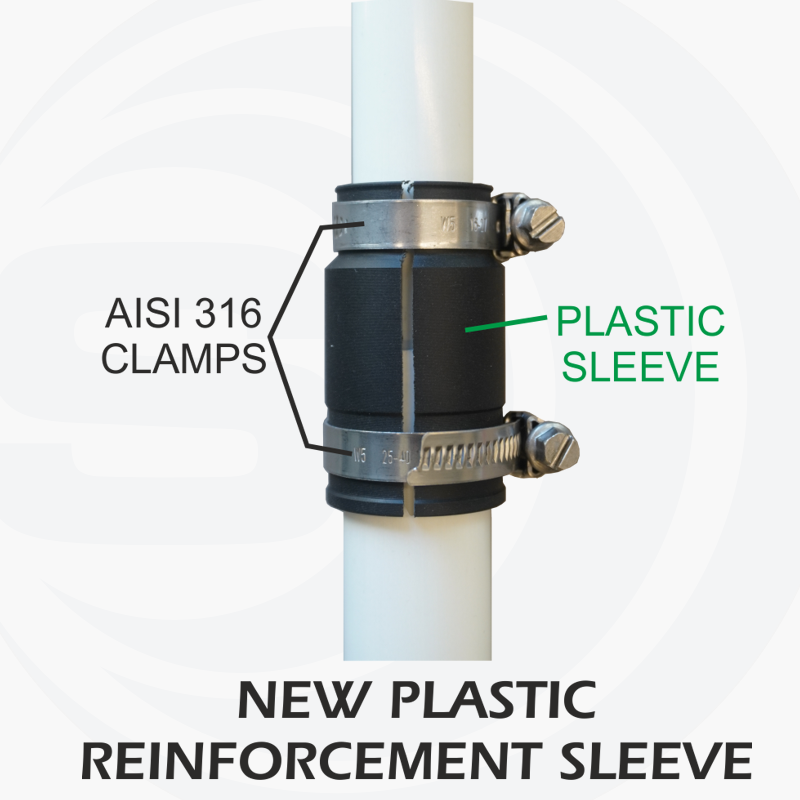

new plastic reinforcement sleeve
Pole fixing bracket: max diameter increased to 60mm
Product Number:
2113220.00 Gain-Master
Electrical Data:
Type: 0.625 λ center feed
Radiation: Omnidirectional
Polarization: Linear vertical
Frequency range: 25.5-30 MHz No tuning required
Systems: 10m-HAM
Gain: 1 to 2 dB higher than conventional 5/8 λ
Max Power: 500 Watts (CW) continuous
Grounding protection: DC-Ground

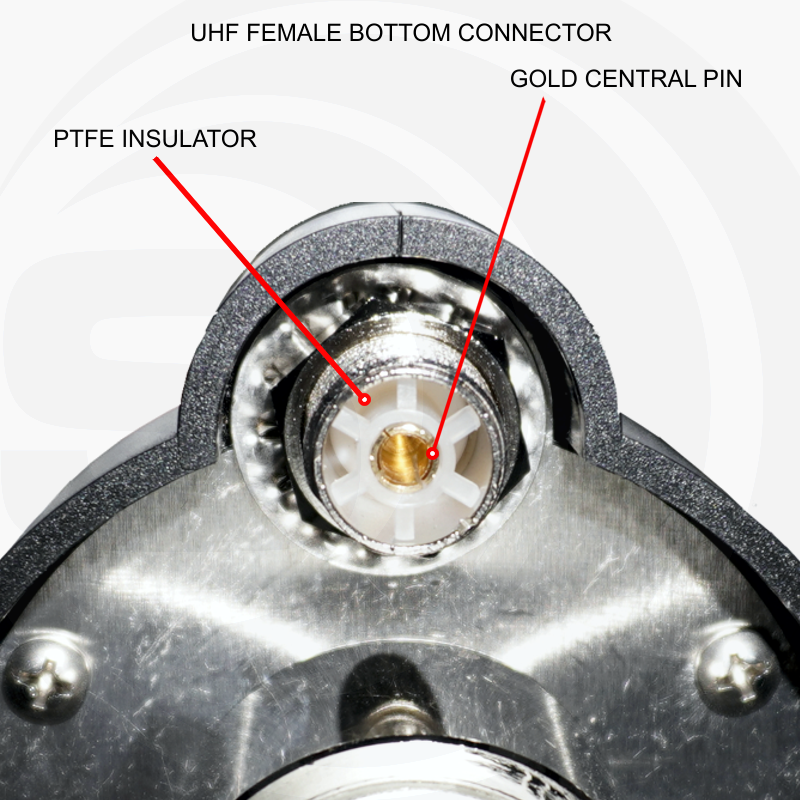

Connector: UHF-female (SO-239)
Mechanical Data:
Materials: Anodized Aluminium, Copper, Stainless steel, Fiberglass, Thermoplastic UV stabilized
Height (approx): 7360 mm / 24.15 ft
Weight (approx): 3000 gr / 6.61 lb
Mounting type: On-Mast
