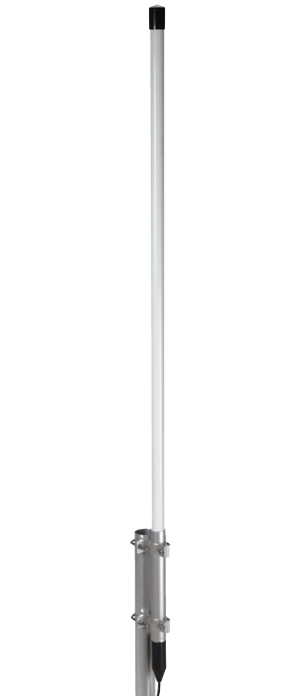

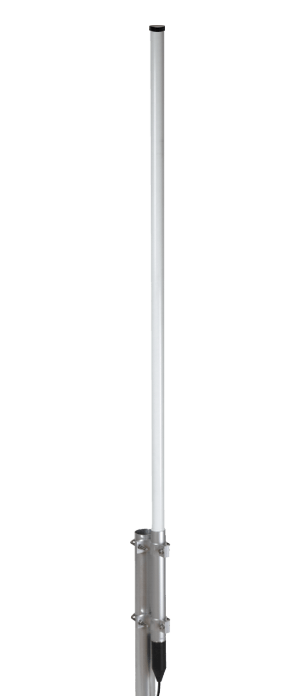

SPO 70cm Series 5 dBi

Professional Wide-Band

UP GRADED

Features:
Pole fixing bracket: max diameter increased to 60mm
Product Number:
2115120/350 SPO-350-5
2115120/380 SPO-380-5
2115120/420 SPO-420-5
2115120/450 SPO-450-5
Electrical Data:
Type: Colinear
Radiation: Omnidirectional
Polarization: Linear vertical
Frequency range:
SPO-350-5:
350-400 MHz @ SWR ≤1.5 No tuning required
SPO-380-5:
380-430 MHz @ SWR ≤1.5 No tuning required
SPO-420-5:
420-470 MHz @ SWR ≤1.5 No tuning required
SPO-450-5:
450-510 MHz @ SWR ≤1.5 No tuning required
Systems: 70cm-HAM, TETRA-350, TETRA, CDMA-450, LTE-450, ISM/SIGFOX/LoRa 433MHz
Gain: 3 dBd – 5.15 dBi
Max Power: 75 W (CW)
Grounding protection: DC-Ground
Connector: N-female
Mechanical Data:
Materials: Anodized Aluminium, Brass, Stainless steel, Fiberglass, EPDM rubber
Height (approx):
SPO-350-5:
1380 mm / 4.53 ft
SPO-380-5:
1330 mm / 4.36 ft
SPO-420-5:
1230 mm / 4.04 ft
SPO-450-5:
1070 mm / 3.51 ft
Weight (approx):
SPO-350-5:
1240 gr / 2.73 lb
SPO-380-5:
1200 gr / 2.65 lb
SPO-420-5:
1160 gr / 2.56 lb
SPO-450-5:
1090 gr / 2.4 lb
Mounting type: On-Mast
