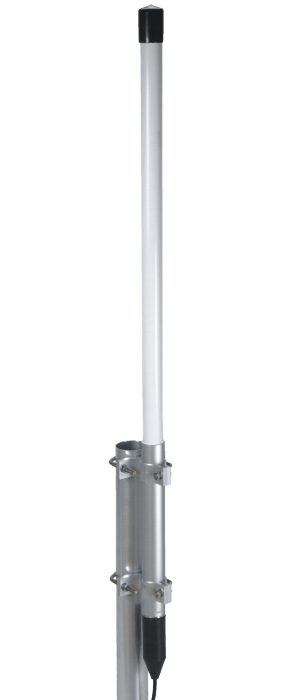

SPO-380-2

Professional Wide-Band

UP GRADED

Features:
Pole fixing bracket: max diameter increased to 60mm
Product Number:
2115020/380 SPO-380-2
Electrical Data:
Type: 1/2 λ
Radiation: Omnidirectional
Polarization: Linear vertical
Frequency range: 380-470 MHz @ SWR ≤1.5 No tuning required
Systems: 70cm-HAM, TETRA, CDMA-450, LTE-450, ISM/SIGFOX/LoRa 433MHz
Gain: 0 dBd – 2.15 dBi
Max Power: 75 W (CW)
Grounding protection: DC-Ground
Connector: N-female
Mechanical Data:
Materials: Anodized Aluminium, Brass, Stainless steel, Fiberglass, EPDM rubber
Height (approx): 780 mm / 2.56 ft
Weight (approx): 890 gr / 1.96 lb
Mounting type: On-Mast
