Product Number:

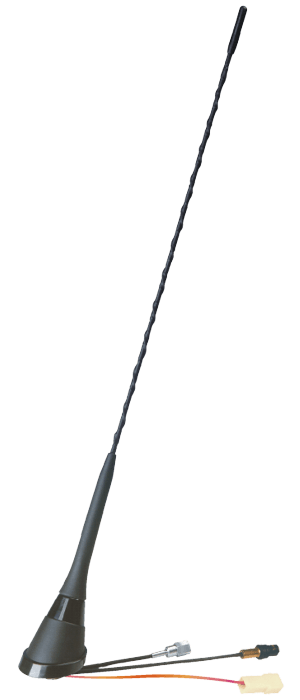

2217015.00	CELLFLEX AM-FM active / 824-960 / 1710-2170

Electrical Data:
Type:	1/4 λ
Radiation:	Omnidirectional
Polarization:	Linear vertical
Frequency range:	0.15-1.6 & 87.5-108 & 824-960 & 1710-2170 MHz No tuning required
Systems:	GSM-900, GSM-1800, 2G-GSM/GPRS/EDGE, 3G-UMTS, AM, FM, ISM/SIGFOX/LoRa 868MHz, DECT
Gain:	ANTENNA: 0 dB ref. to a λ/4 whip AMPLIFIER: AM -4 dB, FM 3 dB
Max Power:	20 W (CW) @ 900/1800 MHz bands)

Mechanical Data:
Materials:	Copper, Chromed brass, Nylon, Zamak
Height (approx):	450 mm / 1.48 ft
Weight (approx):	120 gr / 0.26 lb
Mounting type:	Thru-Hole
