bandiere mobile

GP 900 C
GP 901 C
GP 868 C

GP_901_C_GP_900_C_SILVER
1) GP 901 C
2) GP 900 C
Features:
Pole fixing bracket: max diameter increased to 60mm
Product Number:
2107006.00 GP 900 C
2107606.00 GP 901 C
2107006.00/868 GP 868 C
Electrical Data:
Type: GP 900 C: 1/4 λ + 1/2 λ colinear
GP 901 C: 1/4 λ + 2×1/2 λ colinear
GP 868 C: 1/4 λ + 1/2 λ colinear
Radiation: Omnidirectional
Polarization: Linear vertical
Frequency range:
GP 900 C:
870-960 MHz No tuning required
GP 901 C:
870-960 MHz No tuning required
GP 868 C:
835-900 MHz No tuning required
Systems: GSM-R, GSM-900, ISM/SIGFOX/LoRa 868MHz, ISM/SIGFOX/LoRa 915MHz
Gain: GP 900 C: 3 dBd – 5.15 dBi
GP 901 C: 5 dBd – 8.15 dBi
GP 868 C: 3 dBd – 5.15 dBi
Max Power: 50 W (CW)

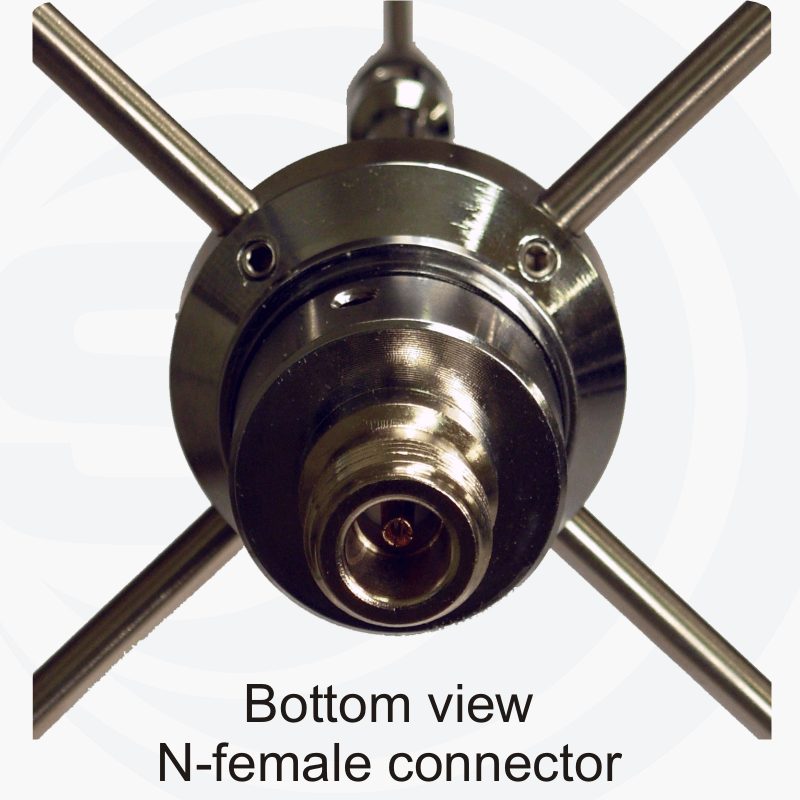

Connector: N-female
Mechanical Data:
Materials: Aluminium, Chromed brass, Stainless Steel 17/7 PH
Height (approx):
GP 900 C:
550 mm / 1.8 ft
GP 901 C:
800 mm / 2.62 ft
GP 868 C:
600 mm / 1.97 ft
Weight (approx):
GP 900 C:
580 gr / 1.28 lb
GP 901 C:
670 gr / 1.48 lb
GP 868 C:
700 gr / 1.54 lb
Mounting type: On-Mast
