bandiere mobile

SO-918-2

SO-918-2_300x

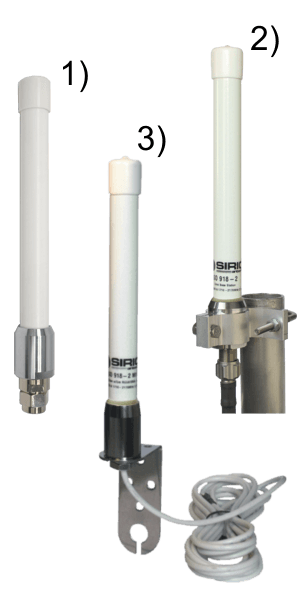

1) SO-918-2 N-m
2) SO-918-2 N-f
3) SO-918-2 M1

UP GRADED

Features:
SO-918-2 N-f Pole fixing bracket: max diameter increased to 60mm
Product Number:
2110320.00/NM SO-918-2 N-m
2110320.00 SO-918-2 N-f
2110920.80 SO-918-2 M1
Included:
Bracket: M-1 (P/N:2503503.00)
Electrical Data:
Type: 1/2 λ
Radiation: Omnidirectional
Polarization: Linear vertical
Frequency range: 868-960 MHz & 1710-2170 MHz No tuning required
Systems: GSM-R, GSM-900, GSM-1800, 2G-GSM/GPRS/EDGE, 3G-UMTS, ISM/SIGFOX/LoRa 868MHz, ISM/SIGFOX/LoRa 915MHz, DECT
Gain: 0 dBd – 2.15 dBi
Max Power: 20 W (CW)
Cable lenght / type:
SO-918-2 N-m:
0 cm (0 in) / Not supplied
SO-918-2 N-f:
0 cm (0 in) / Not supplied
SO-918-2 M1:
5 m (16.4 ft) / Low loss
Connector:
SO-918-2 N-m:
N-male
SO-918-2 N-f:
N-female
SO-918-2 M1:
SMA-male, Other type on request
Mechanical Data:
Materials: Aluminium, Chromed brass, Stainless steel, Fiberglass, PCB
Height (approx): 257 mm / 0.84 ft
Weight (approx): 350 gr / 0.77 lb
Mounting type:
SO-918-2 N-m:
On-Connector
SO-918-2 N-f:
On-Mast
SO-918-2 M1:
Thru-Holes, On-Wall
