SO 4G LTE

Wide-band
SO_4G_LTE_300x

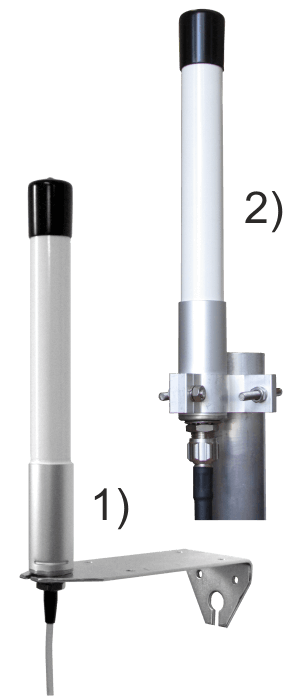

1) SO 4G LTE N-m
2) SO 4G LTE N-f
3) SO 4G LTE W/Cable

UP GRADED

Features:
Power rating increased
Pole fixing bracket: max diameter increased to 60mm
Product Number:
2111520.00/NM SO 4G LTE N-m
2111520.00 SO 4G LTE N-f
2111520.80 SO 4G LTE W/Cable
Electrical Data:
Type: Colinear dipole array
Radiation: Omnidirectional
Polarization: Linear vertical
Frequency range: 790-960 MHz & 1710-2700 MHz No tuning required
Systems: GSM-R, GSM-900, GSM-1800, 2G-GSM/GPRS/EDGE, 3G-UMTS, 4G-LTE, ISM/SIGFOX/LoRa 868MHz, ISM/SIGFOX/LoRa 915MHz, WiFi-2.4GHz, DECT
Gain: 2 dBi @ 790-960 MHz
4 dBi @ 1.71-2.7 GHz
Max Power: Up to 50 Watts
Cable lenght / type:
SO 4G LTE N-m:
0 cm (0 in) / Not supplied
SO 4G LTE N-f:
0 cm (0 in) / Not supplied
SO 4G LTE W/Cable:
5 m (16.4 ft) / Low loss
Connector:
SO 4G LTE N-m:
N-male
SO 4G LTE N-f:
N-female
SO 4G LTE W/Cable:
SMA-male, Other type on request
Mechanical Data:
Materials: Aluminium, Anodized Aluminium, Nickel plated brass, Stainless steel, Galvanized steel
Height (approx): 300 mm / 0.98 ft
Weight (approx):
SO 4G LTE N-m:
230 gr / 0.51 lb
SO 4G LTE N-f:
230 gr / 0.51 lb
SO 4G LTE W/Cable:
495 gr / 1.09 lb
Mounting type:
SO 4G LTE N-m:
On-Connector
SO 4G LTE N-f:
On-Mast
SO 4G LTE W/Cable:
On-Mast, On-Wall
