SNAKE 27 M6
OMEGA 27 M6
SUPER 9 M6 BLUE
T3 27 M6
Suitable For Truck Installation On M6 Thread (Volvo)

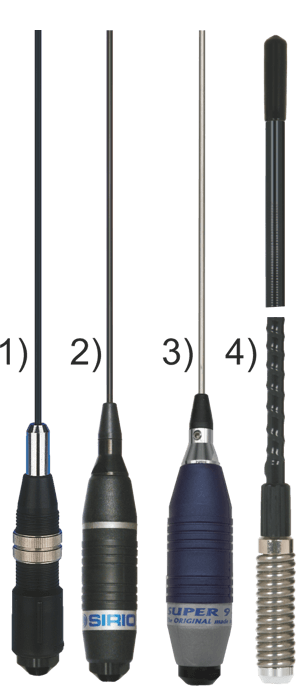

1) SNAKE/MINISNAKE 27 radiator M6
2) OMEGA 27 radiator M6
3) SUPER 9 radiator M6
4) T3 27 radiator M6
2) OMEGA 27 radiator M6
3) SUPER 9 radiator M6
4) T3 27 radiator M6
NEW PRODUCT
| Features: |
|---|
| NEW PRODUCT: SUPER 9 radiator M6
REMARK: M6 / M6 adapter will be standard provided from March 2021 |
Product Number: |
|
|---|---|
| 2404306.06 | SNAKE 27 M6 |
| 2404406.06 | MINI SNAKE 27 M6 |
| 2406306.06 | OMEGA 27 M6 |
| 2430005.06/BLUE | SUPER 9 M6 BLUE |
| 2407015.06 | T3 27 M6 |
Electrical Data: |
|
|---|---|
| Type: | SNAKE 27 M6, MINI SNAKE 27 M6, OMEGA 27 M6: base loaded T3 27 M6: logarithmic loaded |
| Radiation: | Omnidirectional |
| Polarization: | Linear vertical |
| Frequency range: |
SNAKE 27 M6:

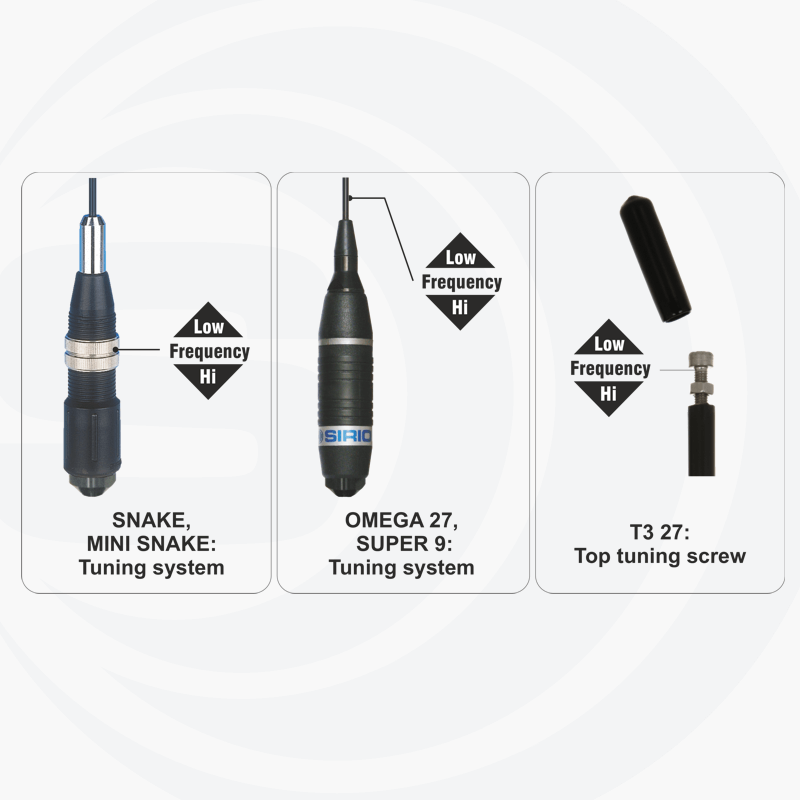

26.5 … 27.4 MHz Tunable
MINI SNAKE 27 M6:
26.5 … 27.4 MHz Tunable
OMEGA 27 M6:
27 … 28.5 MHz Tunable
SUPER 9 M6 BLUE:
27 … 28.5 MHz Tunable
T3 27 M6:
26.9 … 27.5 MHz Tunable
|
| Systems: | CB 27MHz, 10m-HAM |
| Bandwidth: |
SNAKE 27 M6:
≥ 1.8MHz @ SWR ≤ 2
MINI SNAKE 27 M6:
≥ 1MHz @ SWR ≤ 2
OMEGA 27 M6:
≥ 1.3MHz @ SWR ≤ 2
SUPER 9 M6 BLUE:
≥ 1.9MHz @ SWR ≤ 2
T3 27 M6:
≥ 700KHz @ SWR ≤ 2
|
| Max Power: |
SNAKE 27 M6:
10 Watts (CW) continuous
40 Watts (CW) short time MINI SNAKE 27 M6:
10 Watts (CW) continuous
40 Watts (CW) short time OMEGA 27 M6:
15 Watts (CW) continuous
150 Watts (CW) short time SUPER 9 M6 BLUE:
35 Watts (CW) continuous
250 Watts (CW) short time T3 27 M6:
20 Watts (CW) continuous
100 Watts (CW) short time |
| Cable lenght / type: | 0 cm (0 in) / Not supplied |
| Connector: | M6 Thread |
Mechanical Data: |
|
|---|---|
| Materials: | Copper, Brass, Stainless Steel 17/7 PH, Nylon |
| Height (approx): |
SNAKE 27 M6:
1125 mm / 3.69 ft
MINI SNAKE 27 M6:
650 mm / 2.13 ft
OMEGA 27 M6:
940 mm / 3.08 ft
SUPER 9 M6 BLUE:
1380 mm / 4.53 ft
T3 27 M6:
580 mm / 1.9 ft
|
| Weight (approx): |
SNAKE 27 M6:
120 gr / 0.26 lb
MINI SNAKE 27 M6:
110 gr / 0.24 lb
OMEGA 27 M6:
130 gr / 0.29 lb
SUPER 9 M6 BLUE:
180 gr / 0.4 lb
T3 27 M6:
200 gr / 0.44 lb
|
| Mounting type: | M6 Thread |

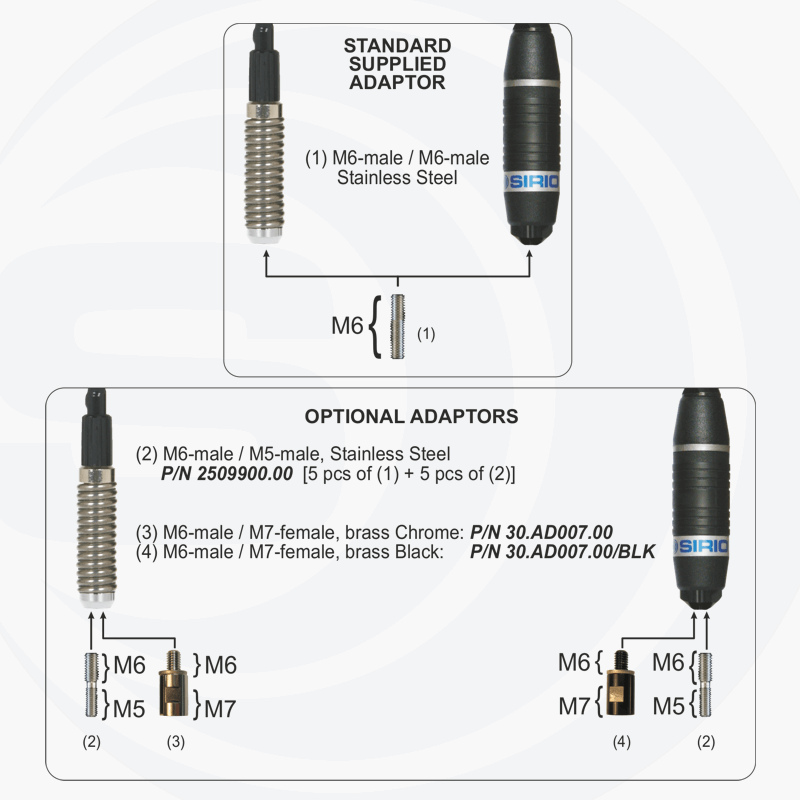

Suitable Accessories: |
|---|
| Adaptor: M5-male / M6-male (P/N:2509900.00) |
| Adaptor: M6-male / M7-female |
