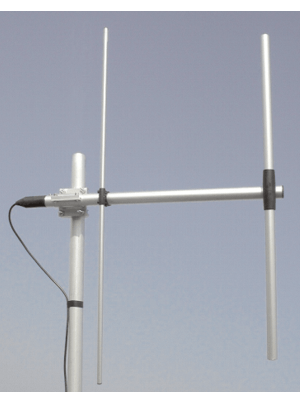

WY 140-2N
WY 155-2N

Wide Band, Highly Symmetrical Radiation Pattern

UP GRADED

Features:
Pole fixing bracket: max diameter increased to 60mm
Product Number:
2113401/140 WY 140-2N
2113401/155 WY 155-2N
Electrical Data:
Type: 2 elements Yagi
Radiation: Directional
Polarization: Linear Vertical or Horizontal
Frequency range:
WY 140-2N:
140-160 MHz @ SWR ≤1.5 No tuning required
WY 155-2N:
155-175 MHz @ SWR ≤1.5 No tuning required
Systems: 2m-HAM, VHF Marine Band, ORBCOMM M2M, ISM-169MHz
Gain: 3.05 dBd – 5.2 dBi
Max Power: 200 W (CW)
Grounding protection: DC-Ground
Connector: N-female
Mechanical Data:
Materials: Anodized Aluminium, Chromed brass, Thermoplastic UV stabilized, EPDM rubber
Dimensions (approx):
WY 140-2N:
740 x 1110 mm / 2.43 x 3.64 ft
WY 155-2N:
740 x 955 mm / 2.43 x 3.13 ft
Weight (approx):
WY 140-2N:
1490 gr / 3.28 lb
WY 155-2N:
1450 gr / 3.2 lb
Mounting type: On-Mast
Suitable Accessories:
Tilting bracket for WY series
