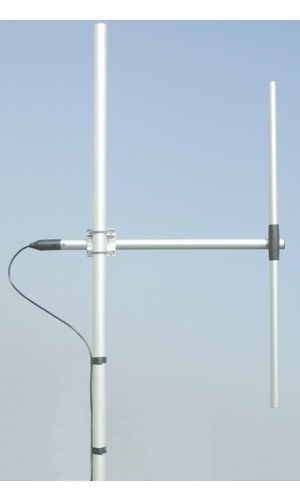

WD 140-N
WD 155-N

Wide Band, Highly Symmetrical Radiation Pattern

UP GRADED

Features:

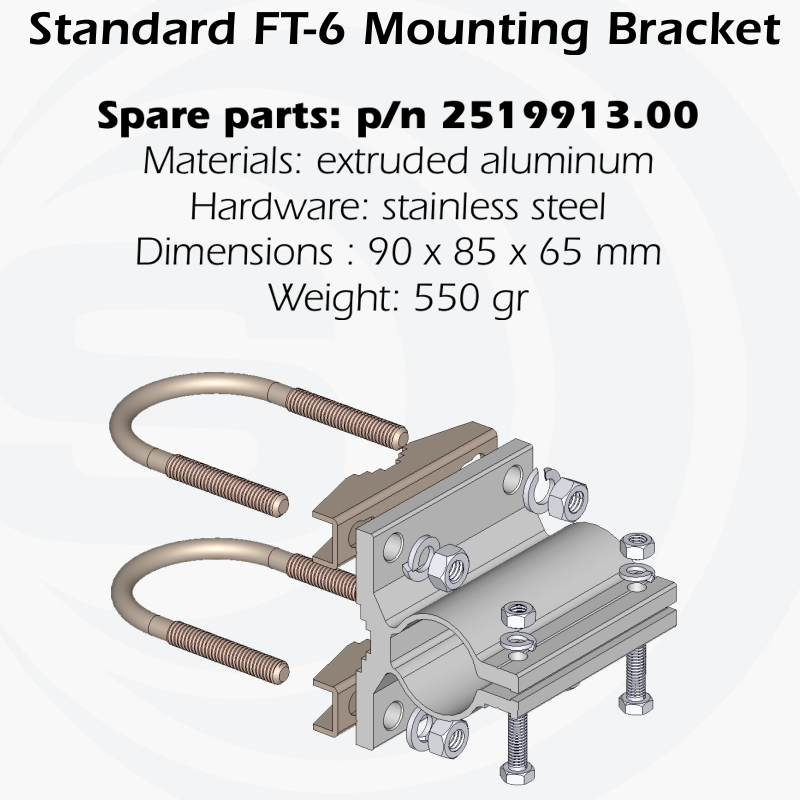

Pole fixing bracket: max diameter increased to 60mm
Product Number:
2113301/140 WD 140-N
2113301/155 WD 155-N
Electrical Data:
Type: 1/2 λ
Radiation: Directional
Polarization: Linear vertical
Frequency range:
WD 140-N:
140-160 MHz @ SWR ≤1.5 No tuning required
WD 155-N:
155-175 MHz @ SWR ≤1.5 No tuning required
Systems: 2m-HAM, VHF Marine Band, ORBCOMM M2M, ISM-169MHz
Gain: 1.85 dBd – 4 dBi
Max Power: 200 W (CW)
Grounding protection: DC-Ground
Connector: N-female
Mechanical Data:
Materials: Anodized Aluminium, Chromed brass, Thermoplastic UV stabilized, EPDM rubber
Dimensions (approx):
WD 140-N:
730 x 915 mm / 2.4 x 3 ft
WD 155-N:
730 x 835 mm / 2.4 x 2.74 ft
Weight (approx): 1390 gr / 3.06 lb
Mounting type: On-Mast
Suitable Accessories:

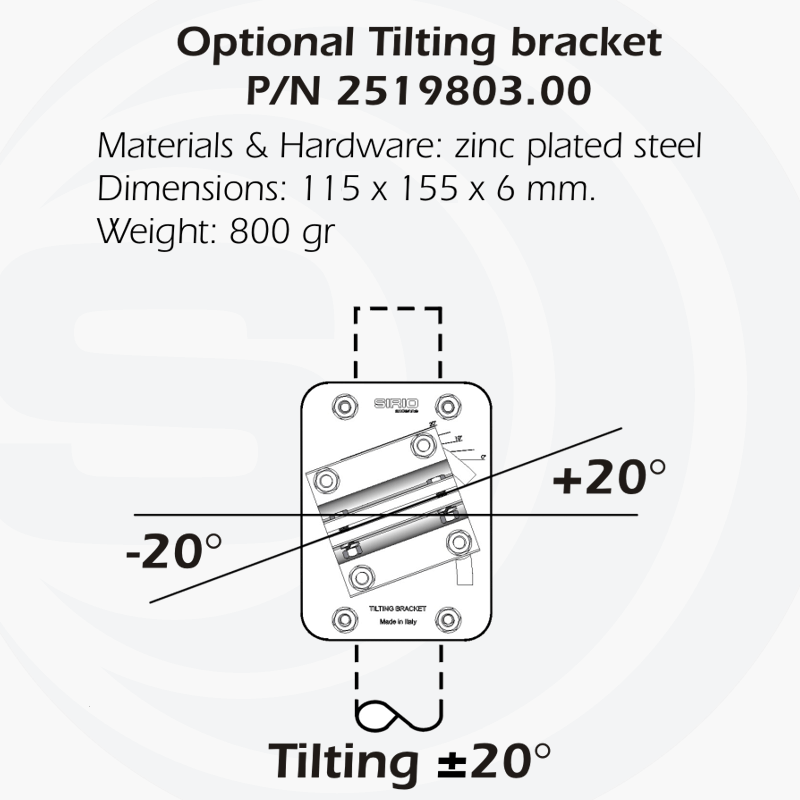

Tilting bracket for WY series
