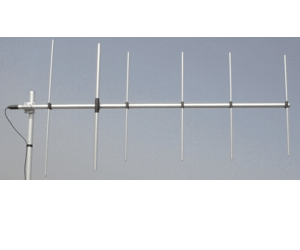

WY 140-6N
WY 155-6N

Wide Band, Highly Symmetrical Radiation Pattern

UP GRADED

Features:
Pole fixing bracket: max diameter increased to 60mm
Product Number:
2113601/140 WY140-6N
2113601/155 WY155-6N
Electrical Data:
Type: 6 elements Yagi
Radiation: Directional
Polarization: Linear Vertical or Horizontal
Frequency range:
WY140-6N:
140-160 MHz @ SWR ≤1.5 No tuning required
WY155-6N:
155-175 MHz @ SWR ≤1.5 No tuning required
Systems: 2m-HAM, VHF Marine Band, ORBCOMM M2M, ISM-169MHz
Gain: 8.35 dBd – 10.5 dBi
Max Power: 200 W (CW)
Grounding protection: DC-Ground
Connector: N-female
Mechanical Data:
Materials: Anodized Aluminium, Chromed brass, Thermoplastic UV stabilized, EPDM rubber
Dimensions (approx):
WY140-6N:
2010 x 1085 mm / 6.59 x 3.56 ft
WY155-6N:
2010 x 985 mm / 6.59 x 3.23 ft
Weight (approx):
WY140-6N:
2440 gr / 5.38 lb
WY155-6N:
2390 gr / 5.27 lb
Mounting type: On-Mast
Suitable Accessories:
Tilting bracket for WY series
