bandiere mobile

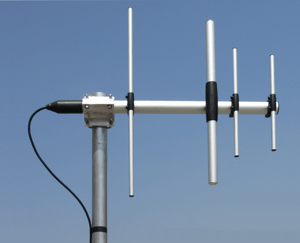

WY 300-4N

Wide Band, Highly Symmetrical Radiation Pattern

UP GRADED

Features:
Soporte de fijación al poste: diámetro máximo aumentado a 60 mm
Product Number:
2113801/300 WY 300-4N
Electrical Data:
Type: 4 elements Yagi
Radiation: Directional
Polarization: Linear Vertical or Horizontal
Frequency range: 300-500 MHz @ SWR ≤2 No tuning required
Systems: 70cm-HAM, TETRA-350, TETRA, CDMA-450, LTE-450, ISM/SIGFOX/LoRa 433MHz
Gain: 5.85 dBb - 8 dBi
Max Power: 150 W (CW)
Grounding protection: DC-Ground
Connector: N-female
Mechanical Data:
Materials: Anodized Aluminium, Nickel plated brass, Thermoplastic UV stabilized, EPDM rubber
Dimensions (approx): 480 x 600 mm / 1.57 x 1.97 ft
Weight (approx): 1300 gr / 2.87 lb
Mounting type: On-Mast
Suitable Accessories:
Tilting bracket for WY series
