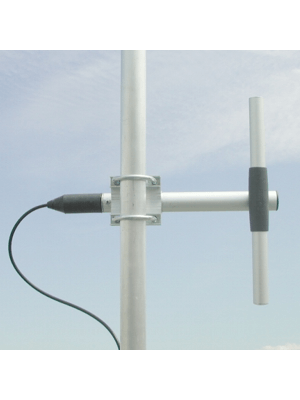

WD 380-N

Wide Band, Highly Symmetrical Radiation Pattern

UP GRADED

Features:
Pole fixing bracket: max diameter increased to 60mm
Product Number:
2113301/380 WD 380-N
Electrical Data:
Type: 1/2 λ
Radiation: Directional
Polarization: Linear vertical
Frequency range: 380-470 MHz @ SWR ≤1.5 No tuning required
Systems: 70cm-HAM, TETRA, CDMA-450, LTE-450, ISM/SIGFOX/LoRa 433MHz
Gain: 2.35 dBd – 4.5 dBi
Max Power: 150 W (CW)
Grounding protection: DC-Ground
Connector: N-female
Mechanical Data:
Materials: Anodized Aluminium, Chromed brass, Thermoplastic UV stabilized, EPDM rubber
Dimensions (approx): 380 x 340 mm / 1.25 x 1.12 ft
Weight (approx): 950 gr / 2.09 lb
Mounting type: On-Mast
Suitable Accessories:
Tilting bracket for WY series
