WY 380-10N
WY 400-10N

Wide Band, Highly Symmetrical Radiation Pattern

UP GRADED

Features:
Pole fixing bracket: max diameter increased to 60mm
Product Number:
2113701/380 WY 380-10N
2113701/400 WY 400-10N
Electrical Data:

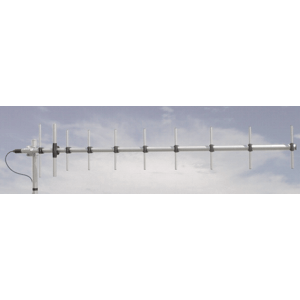

Type: 10 elements Yagi
Radiation: Directional
Polarization: Linear Vertical or Horizontal
Frequency range:
WY 380-10N:
380-440 MHz @ SWR ≤1.5 No tuning required
WY 400-10N:
400-470 MHz @ SWR ≤1.5 No tuning required
Systems: 70cm-HAM, TETRA, CDMA-450, LTE-450, ISM/SIGFOX/LoRa 433MHz
Gain: 11.85 dBd – 14 dBi
Max Power: 150 W (CW)
Grounding protection: DC-Ground
Connector: N-female
Mechanical Data:
Materials: Anodized Aluminium, Chromed brass, Thermoplastic UV stabilized, EPDM rubber
Dimensions (approx):
WY 380-10N:
2125 x 400 mm / 6.97 x 1.31 ft
WY 400-10N:
2000 x 375 mm / 6.56 x 1.23 ft
Weight (approx):
WY 380-10N:
2120 gr / 4.67 lb
WY 400-10N:
2040 gr / 4.5 lb
Mounting type: On-Mast
Suitable Accessories:
Tilting bracket for WY series
