Product Number:

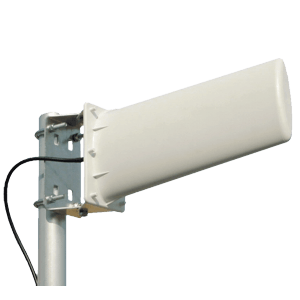

2130103.00	SLP-1.7÷2.5-11

Electrical Data:
Type:	Log periodic
Radiation:	Directional
Polarization:	Linear vertical
Frequency range:	1700-2500 MHz No tuning required
Systems:	GSM-1800, 3G-UMTS, WiFi-2.4GHz, DECT
Gain:	9 dBd – 11.1 dBi
Max Power:	50 W (CW)
Grounding protection:	DC-Ground
Connector:	SMA-female

Mechanical Data:
Materials:	Aluminium, Brass, Stainless steel, Thermoplastic UV stabilized
Dimensions (approx):	345 x 135 x 73 mm / 1.13 x 0.44 x 0.24 ft
Weight (approx):	400 gr / 0.88 lb
Mounting type:	On-Mast, On-Wall
