SO 868-915-2

SO_4G_LTE_300x

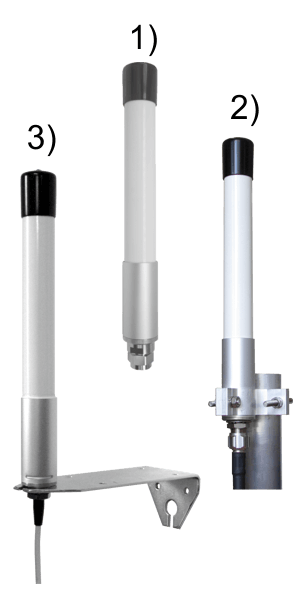

1) SO 868-915-2 N-m
2) SO 868-915-2 N-f
3) SO 868-915-2 W/Cable

UP GRADED

Features:
SO 868-915-2 N-f: Pole fixing bracket: max diameter increased to 60mm
Product Number:
2111920.00/NM SO 868-915-2 N-m
2111920.00 SO 868-915-2 N-f
2111920/5SMA SO 868-915-2 W/Cable
Electrical Data:
Type: 1/2 λ
Radiation: Omnidirectional
Polarization: Linear vertical
Frequency range: 868-915 MHz No tuning required
Systems: ISM/SIGFOX/LoRa 868MHz, ISM/SIGFOX/LoRa 915MHz
Gain: 0 dBd – 2.15 dBi
Max Power: 20 W (CW)
Cable lenght / type:
SO 868-915-2 N-m:
0 cm (0 in) / Not supplied
SO 868-915-2 N-f:
0 cm (0 in) / Not supplied
SO 868-915-2 W/Cable:
5 m (16.4 ft) / Low loss
Connector:
SO 868-915-2 N-m:

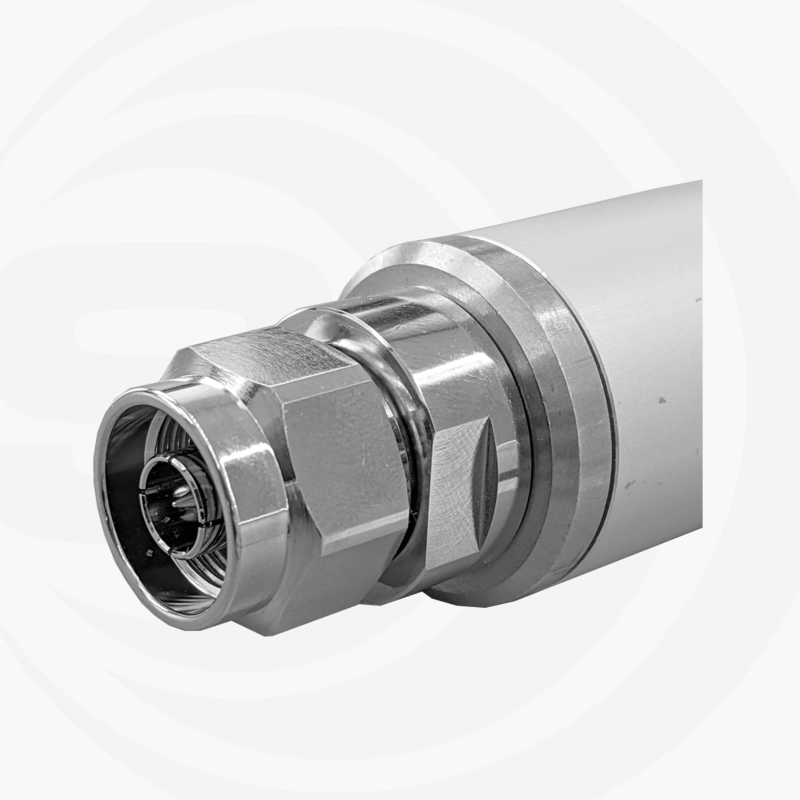

N-male
SO 868-915-2 N-f:

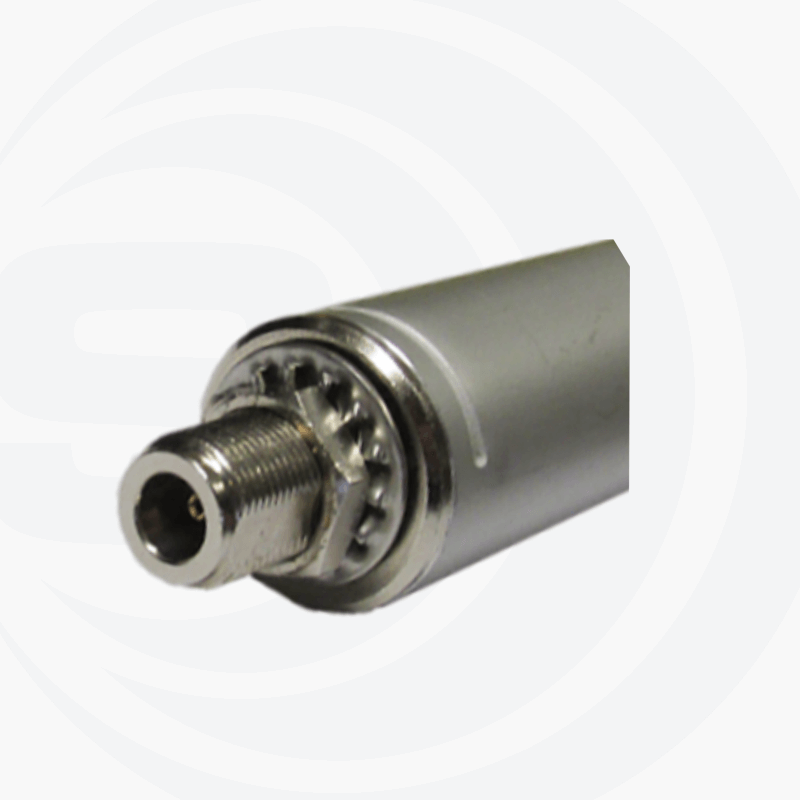

N-female
SO 868-915-2 W/Cable:

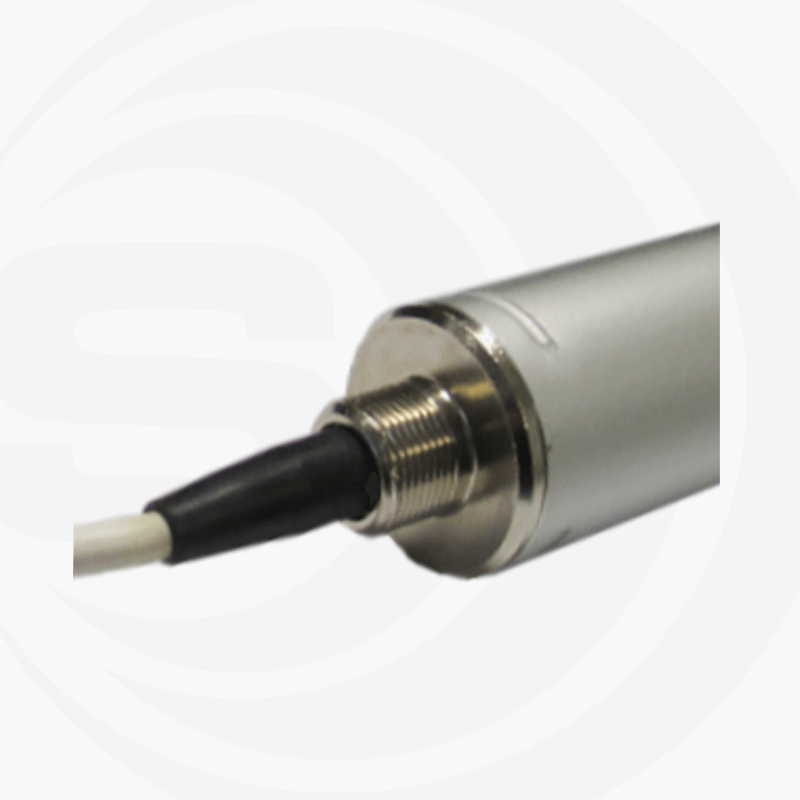

SMA-male
Mechanical Data:
Materials: Anodized Aluminium, Nickel plated brass, Fiberglass, PCB
Height (approx): 290 mm / 0.95 ft
Weight (approx):
SO 868-915-2 N-m:
235 gr / 0.52 lb
SO 868-915-2 N-f:
235 gr / 0.52 lb
SO 868-915-2 W/Cable:
335 gr / 0.74 lb
Mounting type:
SO 868-915-2 N-m:
On-Connector
SO 868-915-2 N-f:
On-Mast
SO 868-915-2 W/Cable:
On-Mast, On-Wall
