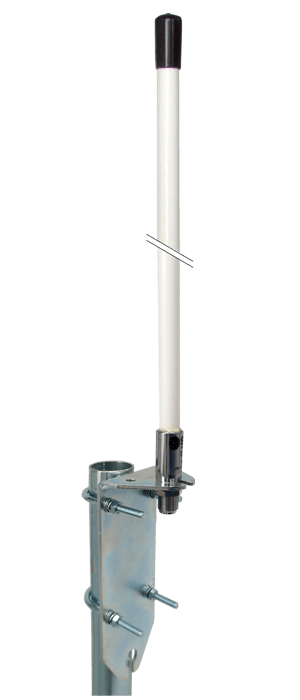

bandiere mobile

SO 169 N
SO 437 N

Product Number:
2112920/169 SO 169 N
Included:
Bracket: M-3 (P/N:2503604.00)
2112920/437 SO 437 N
Included:
Bracket: M-3 (P/N:2503604.00)
Electrical Data:
Type: 1/2 λ
Radiation: Omnidirectional
Polarization: Linear vertical
Frequency range:
SO 169 N:
166-173MHz
SO 437 N:
430-450MHz
Systems: 70cm-HAM, ISM-169MHz, ISM/SIGFOX/LoRa 433MHz
Gain: 0 dBd – 2.15 dBi
Max Power:
SO 169 N:
50 W (CW)
SO 437 N:
20 W (CW)
Grounding protection: DC-Ground

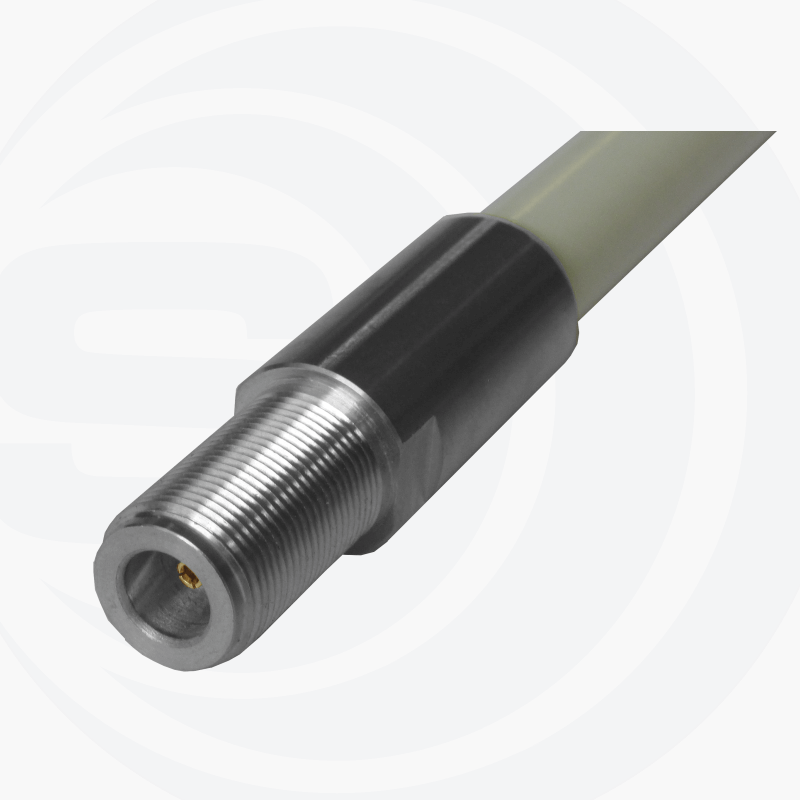

Connector: N-female
Mechanical Data:
Materials: Copper, Chromed brass, Fiberglass
Height (approx):
SO 169 N:
960 mm / 3.15 ft
SO 437 N:
530 mm / 1.74 ft
Weight (approx):
SO 169 N:
260 gr / 0.57 lb
SO 437 N:
150 gr / 0.33 lb
Mounting type: Thru-Holes, On-Wall
