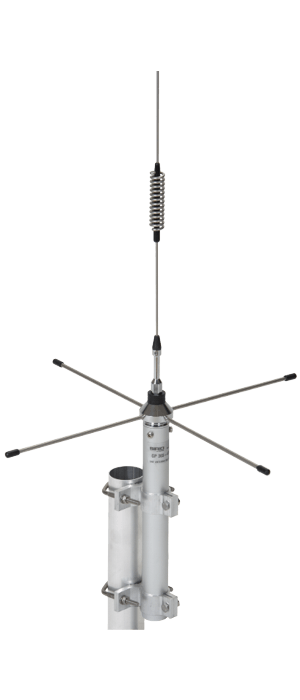

GP 365-470 C

UP GRADED

Features:
Pole fixing bracket: max diameter increased to 60mm
Product Number:
2102105.00 GP 365-470 C
Electrical Data:
Type: 1/4 λ + 1/2 λ colinear
Radiation: Omnidirectional
Polarization: Linear vertical
Frequency range: 365 … 470 MHz Tunable
Systems: 70cm-HAM, TETRA, CDMA-450, ISM/SIGFOX/LoRa 433MHz
Gain: 2.5 dBd – 4.65 dBi
Max Power: 150 Watts (CW) continuous

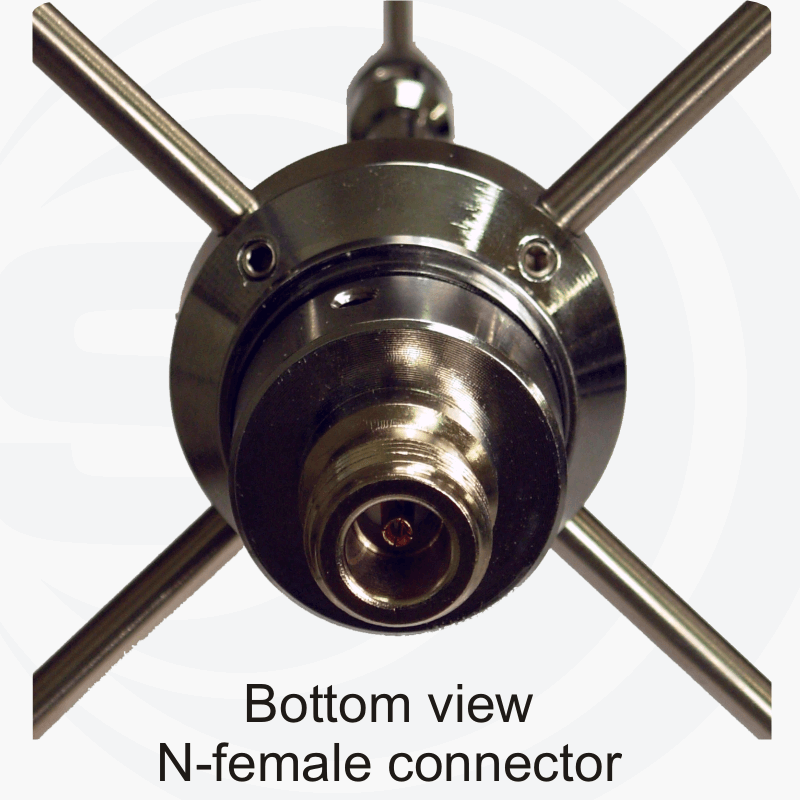

Connector: N-female
Mechanical Data:
Materials: Aluminium, Brass, Stainless Steel 17/7 PH
Height (approx): 990 mm / 3.25 ft
Weight (approx): 730 gr / 1.61 lb
Mounting type: On-Mast
