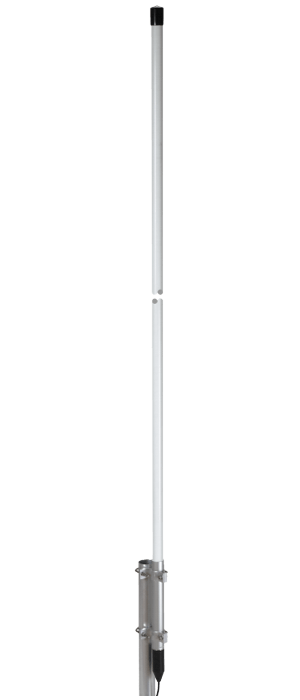

SPO 2m Series 5 dBi

Professional Wide-Band

UP GRADED

Features:
Pole fixing bracket: max diameter increased to 60mm
Product Number:
2115120/135 SPO-135-5
2115120/145 SPO-145-5
2115120/150 SPO-150-5
2115120/158 SPO-158-5
Electrical Data:
Type: Colinear
Radiation: Omnidirectional
Polarization: Linear vertical
Frequency range:
SPO-135-5:
135-147 MHz @ SWR ≤1.5 No tuning required
SPO-145-5:
145-160 MHz @ SWR ≤1.5 No tuning required
SPO-150-5:
150-165 MHz @ SWR ≤1.5 No tuning required
SPO-158-5:
158-175 MHz @ SWR ≤1.5 No tuning required
Systems: 2m-HAM, VHF Marine Band, ORBCOMM M2M, ISM-169MHz
Gain: 3 dBd – 5.15 dBi
Max Power: 100 W (CW)
Grounding protection: DC-Ground
Connector: N-female
Mechanical Data:
Materials: Anodized Aluminium, Brass, Stainless steel, Fiberglass, EPDM rubber
Height (approx):
SPO-135-5:
2940 mm / 9.65 ft
SPO-145-5:
2740 mm / 8.99 ft
SPO-150-5:
2740 mm / 8.99 ft
SPO-158-5:
2590 mm / 8.5 ft
Weight (approx):
SPO-135-5:
2160 gr / 4.76 lb
SPO-145-5:
2045 gr / 4.51 lb
SPO-150-5:
2000 gr / 4.41 lb
SPO-158-5:
1950 gr / 4.3 lb
Mounting type: On-Mast
