Product Number:
2104801.00	SIRIO 827

Electrical Data:
Type:	5/8 λ ground plane
Radiation:	Omnidirectional
Polarization:	Linear vertical

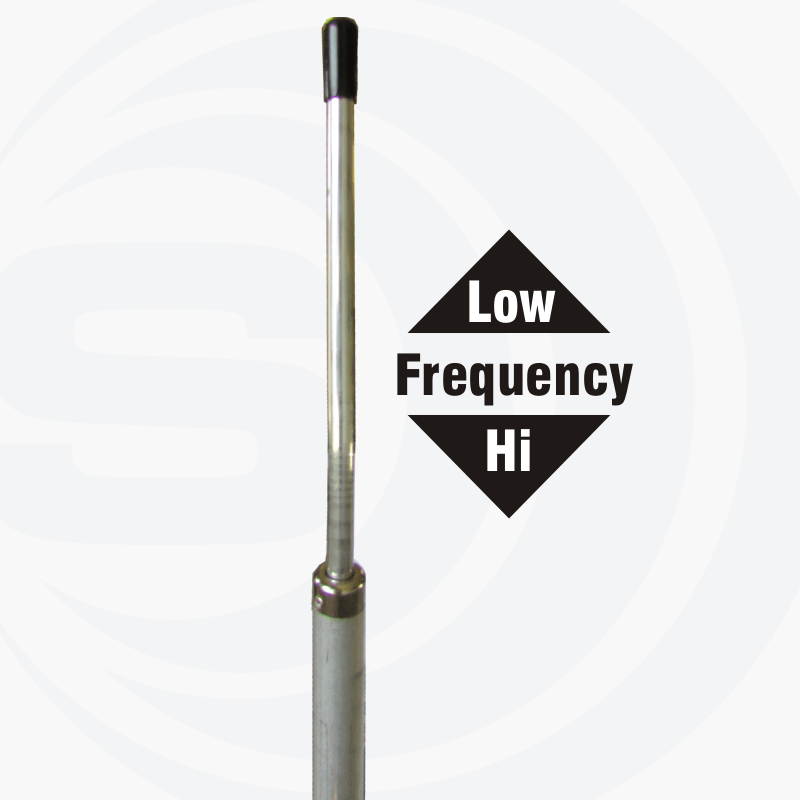

Frequency range:	26.4 ... 28.4 MHz Tunable
Systems:	10m-HAM
Gain:	1.5 dBd, 3.65 dBi
Bandwidth:	≥ 2MHz @ SWR ≤ 2
Max Power:	1000 Watts (CW) continuous 3000 Watts (CW) short time
Grounding protection:	DC-Ground
Connector:	UHF-female (SO-239)

Mechanical Data:
Materials:	Aluminium, Copper, Galvanized steel, Nylon
Height (approx):	6700 mm / 21.98 ft
Weight (approx):	6000 gr / 13.23 lb
Mounting type:	On-Mast

Suitable Accessories:

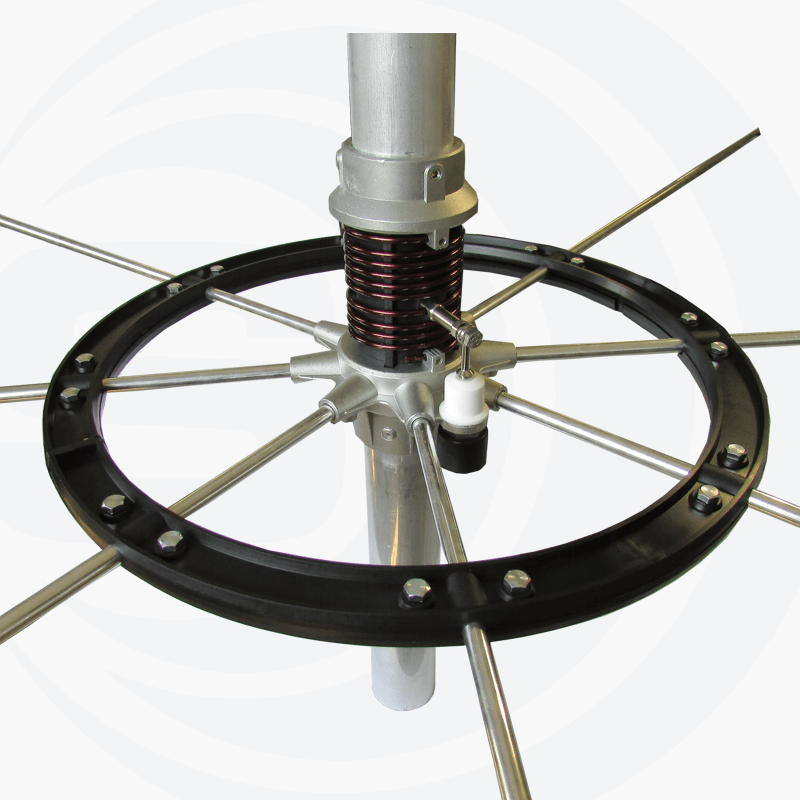

Radial reinforcement ring (P/N:2511001.00)
