Product Number:

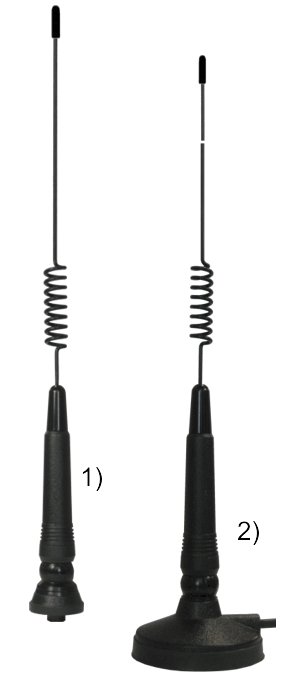

2206506.38	MICRO 30 S
2206506.73	MICRO 30 S MAG

Electrical Data:
Type:	Base loaded
Radiation:	Omnidirectional
Polarization:	Linear vertical
Frequency range:	27 … 27.5 MHz Tunable
Systems:	CB 27MHz
Bandwidth:	≥ 600KHz @ SWR ≤ 2
Max Power:	10 Watts (CW) continuous 30 Watts (CW) short time
Cable lenght / type:	MICRO 30 S: 4 m (13.12 ft) / RG58 MICRO 30 S MAG: 4.5 m (14.76 ft) / RG58
Connector:	Not supplied

Mechanical Data:
Materials:	Copper, Stainless Steel 17/7 PH, Thermoplastic UV stabilized
Height (approx):	MICRO 30 S: 325 mm / 1.07 ft MICRO 30 S MAG: 350 mm / 1.15 ft
Weight (approx):	MICRO 30 S: 80 gr / 0.18 lb MICRO 30 S MAG: 440 gr / 0.97 lb
Mounting type:	MICRO 30 S: Thru-Hole MICRO 30 S MAG: Magnetic mount

Suitable Accessories:
Connector: UHF-male (PL-259) (P/N: 2505600.00)
