SMS-2.4×4-11

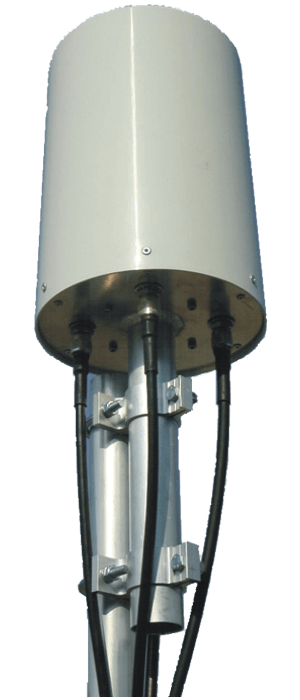

Sector Antenna
SMS-24x4-11

Product Number:
P/N: 2130803.00 SMS-2.4×4-11
Electrical Data:
Type: Multi sector array
Radiation: Directional
Polarization: Linear vertical
Frequency range: 2.4-2.485 GHz @ SWR ≤ 1.5 No tuning required
Systems: WiFi-2.4GHz
Gain: 8.9 dBd – 11 dBi
Max Power: 20 W (CW)
Grounding protection: DC-Ground
Connector: N-female
Mechanical Data:
Materials: Aluminium, Stainless steel, Thermoplastic UV stabilized, PCB
Dimensions (approx): 600 x Ø216 mm / 1.97 x Ø0.71 ft
Weight (approx): 2300 gr / 5.07 lb
Mounting type: On-Mast
