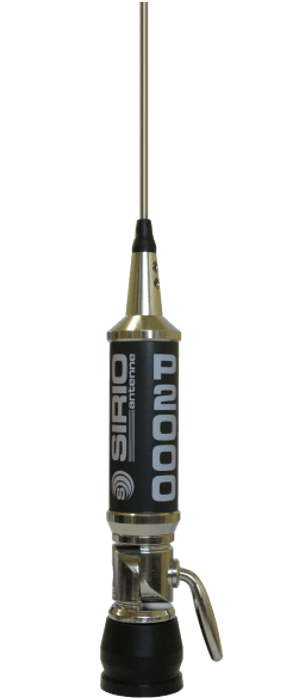

PERFORMER P2000

High Power Handling Capability
Product Number:
2218305.50 PERFORMER P2000
Included:
Cable: 4m/13ft Cable for NE-PL, Turbo and Performer - Max power up to 300W (P/N:2505905.00)
2218305.51 PERFORMER P2000 PL
Electrical Data:
Type: Base Loaded
Radiation: Omnidirectional
Polarization: Linear vertical
Frequency range: 27 … 30 MHz Tunable
Systems: CB 27MHz, 10m-HAM
Bandwidth: ≥ 1.8MHz @ SWR ≤ 2
Max Power: 2000 Watts Duty Cicle 5′ on-5′ off
Grounding protection: DC-Ground
Cable lenght / type:
PERFORMER P2000:
4 m (13.12 ft) / RG58
PERFORMER P2000 PL:
0 cm (0 in) / Not supplied
Connector:
PERFORMER P2000:
Not supplied
PERFORMER P2000 PL:
UHF-male (PL-259)
Mechanical Data:
Materials: Copper, Chromed brass, Stainless Steel 17/7 PH, Thermoplastic UV stabilized, Zamak
Height (approx): 1920 mm / 6.3 ft
Weight (approx): 730 gr / 1.61 lb

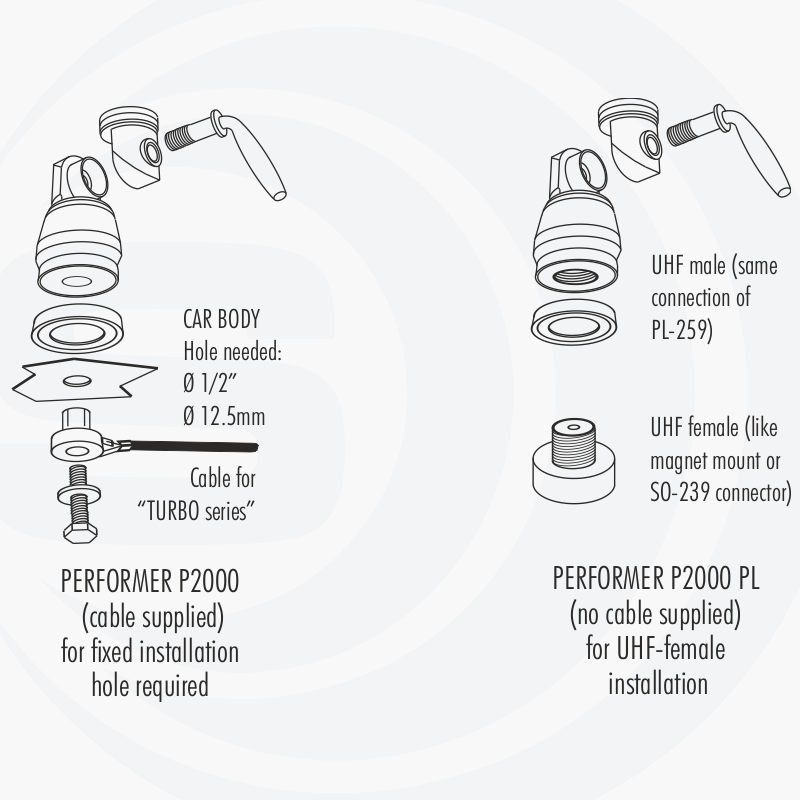

Mounting type:
PERFORMER P2000:
Thru-Hole
PERFORMER P2000 PL:
On-Connector
Suitable Accessories:
Magnetic Mount: MAG 145 PL (P/N:2502702.05)
Cable: SO-239 Angular connector w/cable (P/N:2506105.00)
Cable: 4m/13ft RG303 HI-POWER Cable for NE-PL, Turbo and Performer - Max power up to 2000W (P/N:2509605.00)
Bracket: ABN-2 Trunk Mount (P/N:2504105.00)
Bracket: KF Gutter mount (P/N:2504205.00)
Bracket: Asp-1 Chrome (P/N:2504004.00)
Connector: UHF-male (PL-259) (P/N: 2505600.00)
