MADE IN ITALY since 1972

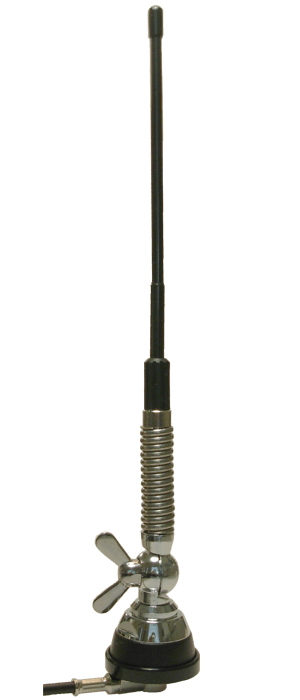

T-VHF

NEW PRODUCT
Product Number:
P/N: 2238015.28 T-VHF
Included:

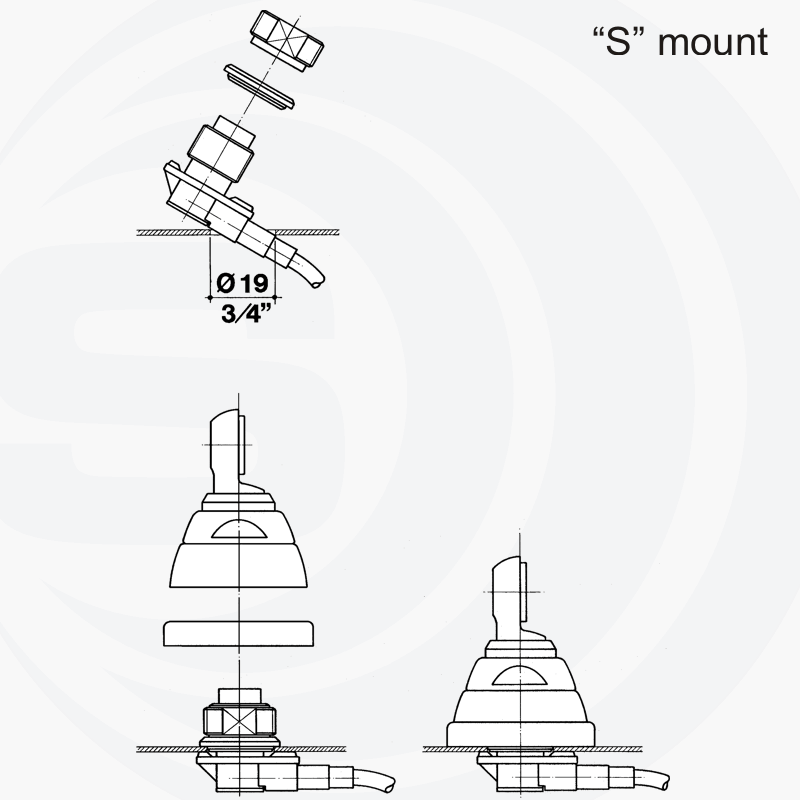

Hole mount: S
Screw Bolt
Electrical Data:
Type: 1/4 λ
Radiation: Omnidirectional
Polarization: Linear vertical
Frequency range: 163–173 MHz No tuning required
Gain: 0 dB ref. to a λ/4 whip
Max Power: 25 W (CW)
Cable lenght / type: 5 m (16.4 ft) / RG58
Connector: Not supplied
Mechanical Data:
Materials: Copper, Chromed brass, Stainless steel, Fiberglass
Height (approx): 330 mm / 1.08 ft
Weight (approx): 400 gr / 0.88 lb
Mounting type: Thru-Hole
