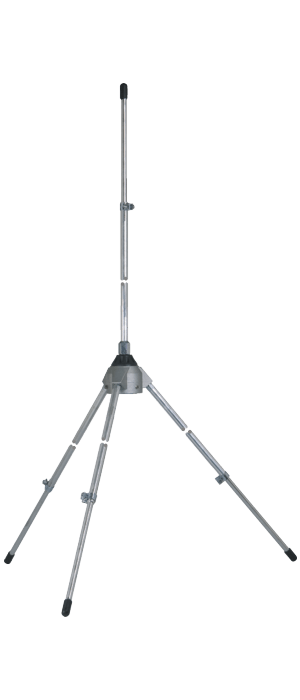

GPA series

Product Number:
2100801.00 GPA 27-45
2101401.00 GPA 40-70
2101501.00 GPA 66-108
2108501.00 GPA 108-136
2101601.00 GPA 135-175
2105001.00 GPA 170-230
Electrical Data:
Type: 1/4 λ ground plane
Radiation: Omnidirectional
Polarization: Linear vertical
Frequency range:
GPA 27-45:
27 … 45 MHz Tunable
GPA 40-70:
40 … 70 MHz Tunable
GPA 66-108:
66 … 108 MHz Tunable
GPA 108-136:
108 … 136 MHz Tunable
GPA 135-175:
135 … 175 MHz Tunable
GPA 170-230:
170 … 230 MHz Tunable
Systems: 10m-HAM, 6m-HAM, 2m-HAM, 1.25m-HAM, VHF Airband, VHF Marine Band, VHF Low-band (66-88MHz), ORBCOMM M2M, AIS-162MHz, FM, ISM-169MHz
Gain: 0 dBd – 2.15 dBi
Bandwidth:
GPA 27-45:
≥ 2.5MHz @ SWR ≤ 2
GPA 40-70:
≥ 3.7MHz @ SWR ≤ 2
GPA 66-108:
≥ 6.5MHz @ SWR ≤ 2
GPA 108-136:
≥ 12.2MHz @ SWR ≤ 2
GPA 135-175:
≥ 13MHz @ SWR ≤ 2
GPA 170-230:
≥ 19MHz @ SWR ≤ 2
Max Power:
GPA 27-45:
1000 W (CW)
GPA 40-70:
1000 W (CW)
GPA 66-108:
500 W (CW)
GPA 108-136:
500 W (CW)
GPA 135-175:
300 W (CW)
GPA 170-230:
300 W (CW)
Connector: UHF-female (SO-239)
Mechanical Data:
Materials: Aluminium, Chromed brass, Zamak
Height (approx):
GPA 27-45:
4730 mm / 15.52 ft
GPA 40-70:
3200 mm / 10.5 ft
GPA 66-108:
1930 mm / 6.33 ft
GPA 108-136:
1185 mm / 3.89 ft
GPA 135-175:
960 mm / 3.15 ft
GPA 170-230:
760 mm / 2.49 ft
Weight (approx):
GPA 27-45:
1250 gr / 2.76 lb
GPA 40-70:
935 gr / 2.06 lb
GPA 66-108:
700 gr / 1.54 lb
GPA 108-136:
520 gr / 1.15 lb
GPA 135-175:
520 gr / 1.15 lb
GPA 170-230:
480 gr / 1.06 lb
Mounting type: On-Mast
Suitable Accessories:

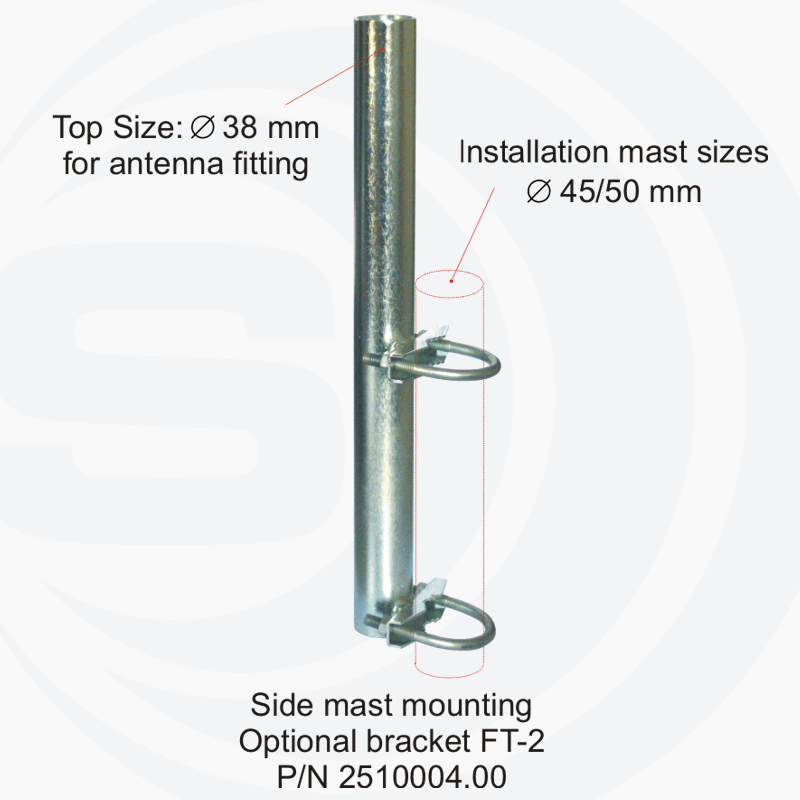

Bracket: FT-2
