PA-2.4-2 TNC
PA-2.4-2 SMA

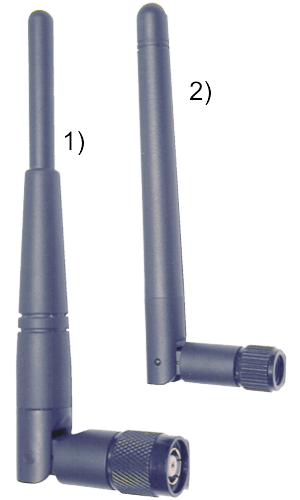

PA-24-2_TNC_PA-24-2_SMA
1) PA-2.4-2 TNC
2) PA-2.4-2 SMA

Product Number:
P/N: 2450002.21RP PA-2.4-2 TNC-m RP
P/N: 2450102.15RP PA-2.4-2 SMA-m RP
Electrical Data:
Type: 1/2 λ
Radiation: Omnidirectional
Polarization: Linear Vertical or Horizontal
Frequency range: 2.4-2.485 GHz No tuning required
Systems: WiFi-2.4GHz
Gain: 0 dBd – 2.15 dBi
Max Power: 1 W (CW)
Connector:
PA-2.4-2 TNC-m RP:
TNC-male Reverse polarity
PA-2.4-2 SMA-m RP:
SMA-male Reverse polarity
Mechanical Data:
Materials: Copper, Chromed brass, Thermoplastic UV stabilized
Dimensions (approx):
PA-2.4-2 TNC-m RP:
141 x Ø14.5 mm / 0.46 x Ø0.05 ft
PA-2.4-2 SMA-m RP:
108 x Ø10 mm / 0.35 x Ø0.03 ft
Weight (approx): 25 gr / 0.06 lb
Mounting type: On-Connector
