NEW TITANIUM 3001

NEW_TITANIUM_3001

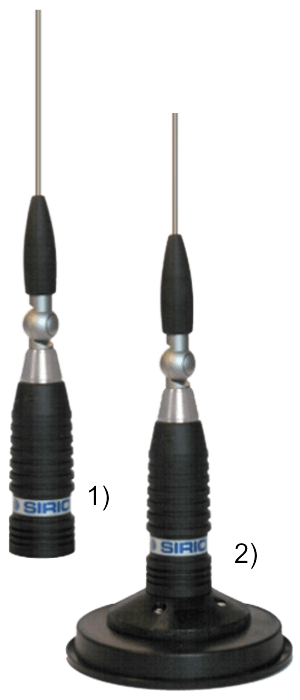

1) NEW TITANIUM 3001 PL
2) NEW TITANIUM 3001 MAG
Product Number:
2211805.05 NEW TITANIUM 3001 PL
2211805.23 NEW TITANIUM 3001 N
Included:
Hole mount: N Chrome (P/N:2500102.01)
Cable: 4m/13ft Cable for N or N-PL mounts (P/N:2505705.00)
2211805.63 NEW TITANIUM 3001 MAG
Included:
Magnetic Mount: PM 125 PL (P/N:2502602.05)
Electrical Data:
Type: Base loaded
Radiation: Omnidirectional
Polarization: Linear vertical
Frequency range: 27 … 28.5 MHz Tunable
Systems: CB 27MHz, 10m-HAM
Bandwidth: ≥ 1.3MHz @ SWR ≤ 2
Max Power: 300 Watts (CW) continuous
900 Watts (CW) short time
Grounding protection: DC-Ground
Cable lenght / type:
NEW TITANIUM 3001 PL:
0 cm (0 in) / Not supplied
NEW TITANIUM 3001 N:
4 m (13.12 ft) / RG58
NEW TITANIUM 3001 MAG:
3.6 m (11.81 ft) / RG58
Connector:
NEW TITANIUM 3001 PL:
UHF-male (PL-259)
NEW TITANIUM 3001 N:
Not supplied
NEW TITANIUM 3001 MAG:
UHF-male (PL-259)
Mechanical Data:
Materials: Copper, Brass, Stainless Steel 17/7 PH, Nylon
Height (approx): 1485 mm / 4.87 ft
Weight (approx): 300 gr / 0.66 lb
Mounting type:
NEW TITANIUM 3001 PL:
On-Connector
NEW TITANIUM 3001 N:
Thru-Hole
NEW TITANIUM 3001 MAG:
Magnetic mount
Suitable Accessories:
Hole mount: N-PL (P/N:2500502.05)
Hole mount: NE-PL (P/N:2500602.05)
Cable: SG AC/U Angular connector (P/N:2513005.00)
Cable: SO-239 Angular connector w/cable (P/N:2506105.00)
Bracket: ABN-2 Trunk Mount (P/N:2504105.00)
Bracket: KF Gutter mount (P/N:2504205.00)
Bracket: Asp-1 Chrome (P/N:2504004.00)
Connector: UHF-male (PL-259) (P/N: 2505600.00)
