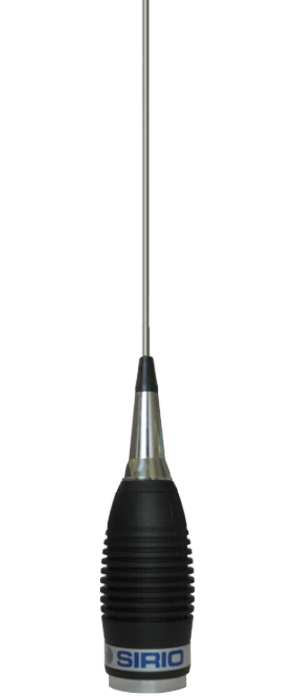

MEGAWATT 4000 R

High Power Handling Capability
Features:
SILVER color available
Product Number:
2211605.05/RIG MEGAWATT 4000 R
Electrical Data:
Type: Base loaded
Radiation: Omnidirectional
Polarization: Linear vertical
Frequency range: 27 … 30 MHz Tunable
Systems: CB 27MHz, 10m-HAM
Bandwidth: ≥ 2MHz @ SWR ≤ 2
Max Power: 600 Watts (CW) continuous
1800 Watts (CW) short time
Grounding protection: DC-Ground
Cable lenght / type: 0 cm (0 in) / Not supplied
Connector: UHF-male (PL-259)
Mechanical Data:
Materials: Copper, Brass, Stainless Steel 17/7 PH, Nylon
Height (approx): 1956 mm / 6.42 ft
Weight (approx): 380 gr / 0.84 lb
Mounting type: On-Connector
Suitable Accessories:
Hole mount: N-PL (P/N:2500502.05)
Hole mount: NE-PL (P/N:2500602.05)
Magnetic Mount: MAG 145 PL (P/N:2502702.05)
Cable: SO-239 Angular connector w/cable (P/N:2506105.00)
Bracket: ABN-2 Trunk Mount (P/N:2504105.00)
Bracket: KF Gutter mount (P/N:2504205.00)
Bracket: Asp-1 Chrome (P/N:2504004.00)
