MADE IN ITALY since 1972

TURBO-5000
PERFORMER-5000

High Power Handling Capability

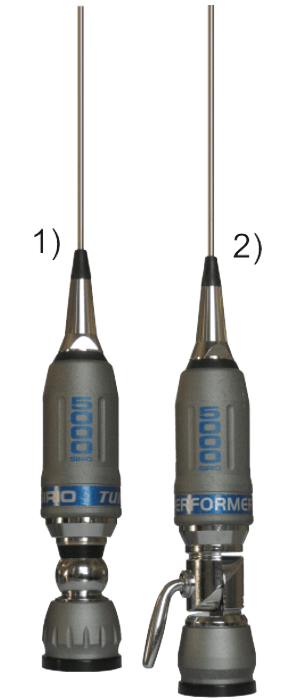

TURBO-5000_PERFORMER-5000
1) TURBO-5000
2) PERFORMER-5000

Product Number:
P/N: 2218505.50 PERFORMER-5000
Included:
Cable: 4m/13ft Cable for NE-PL, Turbo and Performer (P/N:2505905.00)
P/N: 2218505.51 PERFORMER-5000 PL
P/N: 2202205.40 TURBO-5000
Included:
Cable: 4m/13ft Cable for NE-PL, Turbo and Performer (P/N:2505905.00)
P/N: 2202205.43 TURBO-5000 PL
Electrical Data:
Type: Base loaded
Radiation: Omnidirectional
Polarization: Linear vertical
Frequency range: 27 … 30 MHz Tunable
Systems: CB 27MHz, 10m-HAM
Bandwidth: ≥ 2MHz @ SWR ≤ 2
Max Power: 1500 Watts (CW) continuous 5000
Watts (CW) short time
Grounding protection: DC-Ground
Cable lenght / type:
PERFORMER-5000:
4 m (13.12 ft) / RG58
PERFORMER-5000 PL:
Not supplied
TURBO-5000:
4 m (13.12 ft) / RG58
TURBO-5000 PL:
Not supplied
Connector:
PERFORMER-5000:
Not supplied
PERFORMER-5000 PL:
UHF-male (PL-259)
TURBO-5000:
Not supplied
TURBO-5000 PL:
UHF-male (PL-259)
Mechanical Data:
Materials: Copper, Chromed brass, Stainless Steel 17/7 PH, Thermoplastic UV stabilized
Height (approx): 1965 mm / 6.45 ft
Weight (approx): 650 gr / 1.43 lb
Mounting type:
PERFORMER-5000:
Thru-Hole
PERFORMER-5000 PL:
On-Connector
TURBO-5000:
Thru-Hole
TURBO-5000 PL:
On-Connector
Suitable Accessories:
Magnetic Mount: MAG 145 PL (P/N:2502702.05)
Cable: SO-239 Angular connector w/cable (P/N:2506105.00)
Cable: 4m/13ft RG303 HI-POWER Cable for NE-PL, Turbo and Performer (P/N:2509605.00)
Bracket: ABN-2 Trunk Mount (P/N:2504105.00)
Bracket: KF Gutter mount (P/N:2504205.00)
Bracket: Asp-1 Chrome (P/N:2504004.00)
Connector: UHF-male (PL-259) (P/N: 2505600.00)
