MADE IN ITALY since 1972

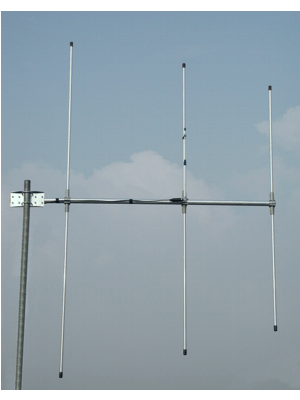

SY 68-3
SY 78-3


Product Number:
P/N: 2105101/68 SY 68-3
P/N: 2105101/78 SY 78-3
Electrical Data:
Type: 3 elements Yagi
Radiation: Directional
Polarization: Linear Vertical or Horizontal
Frequency range:
SY 68-3:
68-78 MHz No tuning required
SY 78-3:
78-88 MHz No tuning required
Systems: VHF Low-band (66-88MHz)
Gain: 4.85 dBd – 7 dBi
Max Power: 350 W (CW)
Grounding protection: All metal parts are DC-grounded, the inner conductor is coupled capacitively
Connector: UHF-female (SO-239)
Mechanical Data:
Materials: Aluminium, Chromed brass, Galvanized steel, Zamak
Dimensions (approx):
SY 68-3:
2235 x 1600 mm / 7.33 x 5.25 ft
SY 78-3:
1955 x 1600 mm / 6.41 x 5.25 ft
Weight (approx):
SY 68-3:
3360 gr / 7.41 lb
SY 78-3:
3270 gr / 7.21 lb

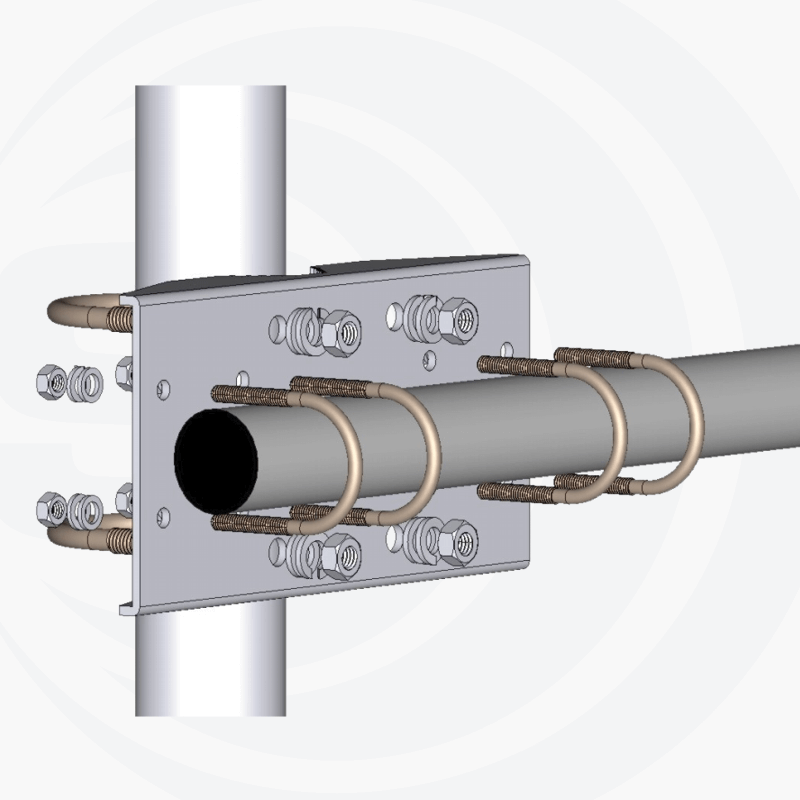

Mounting type: On-Mast
