HGO 433-868

Product Number:
2154104/05CO HGO 433&868 50 cm cable
2154104/5CO HGO 433&868 5 m cable
Electrical Data:
Type: Multi Band Dipole
Radiation: Omnidirectional
Polarization: Linear vertical
Frequency range: 415-465 MHz & 815-890 MHz No tuning required
Systems: ISM/SIGFOX/LoRa 868MHz, ISM/SIGFOX/LoRa 433MHz
Gain: 2 dBi for 433 MHz band
4 dBi for 868 MHz band
Max Power: 20 W (CW)
Cable lenght / type:
HGO 433&868 50 cm cable:
50 cm (19.69 in) / Low loss
HGO 433&868 5 m cable:
5 m (16.4 ft) / Low loss
Connector: SMA-male, Other type on request
Mechanical Data:
Materials: Galvanized steel, Thermoplastic UV stabilized, PCB

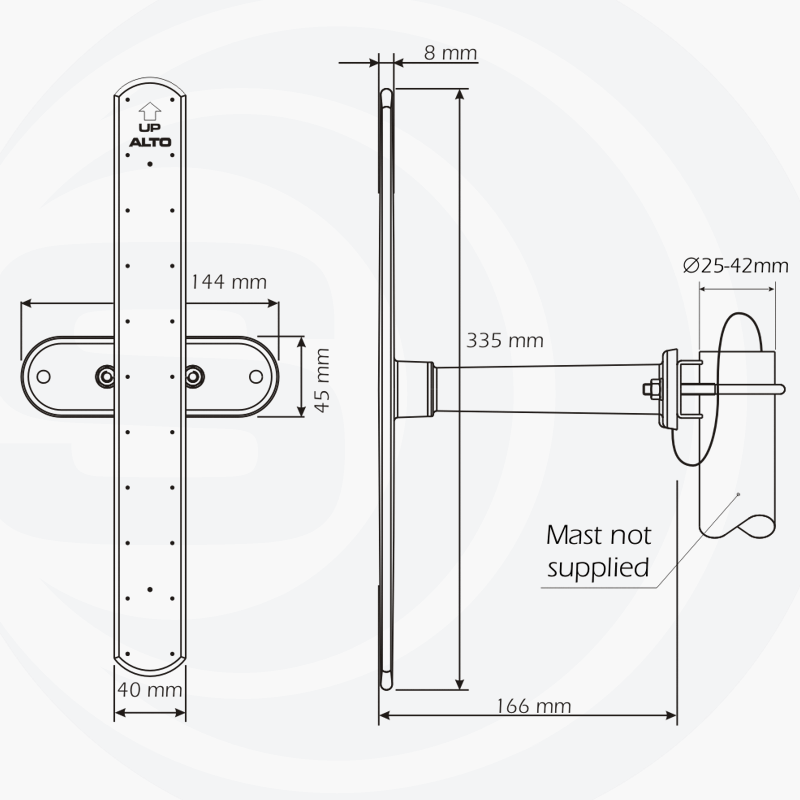

Dimensions (approx): 335 x 166 x 144 mm / 1.1 x 0.54 x 0.47 ft
Weight (approx): 350 gr / 0.77 lb

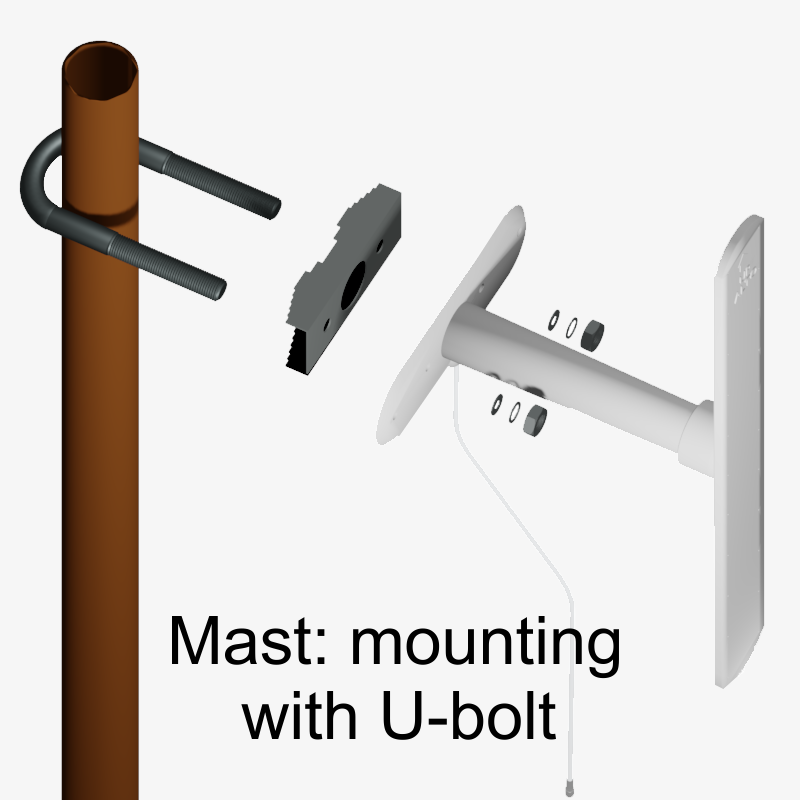

Mounting type: On-Mast, On-Wall
