BULL TRUCKER

Unique LED PCB That Light Up When Transmit
BULL_trucker

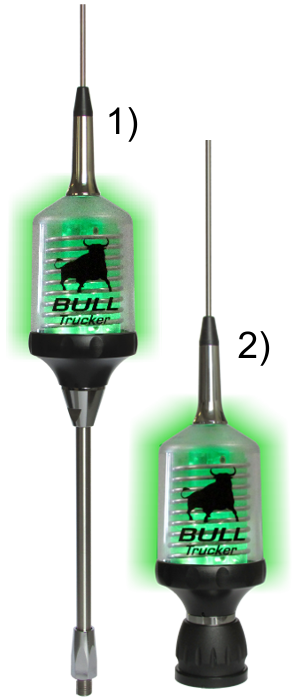

1) BULL TRUCKER W/SHAFT
2) BULL TRUCKER COAX & PL

NEW PRODUCT

Product Number:
2418605.03 BULL TRUCKER 3000 W/SHAFT LED
2418705.03 BULL TRUCKER 5000 W/SHAFT LED
2218605.50 BULL TRUCKER 3000 COAX LED
Included:
Cable: 4m/13ft Cable for NE-PL, Turbo and Performer - Max power up to 300W (P/N:2505905.00)
2218705.50 BULL TRUCKER 5000 COAX LED
Included:
Cable: 4m/13ft Cable for NE-PL, Turbo and Performer - Max power up to 300W (P/N:2505905.00)
2218605.51 BULL TRUCKER 3000 PL LED
2218705.51 BULL TRUCKER 5000 PL LED
Electrical Data:
Type: Trucker antenna
Radiation: Omnidirectional
Polarization: Linear vertical
Frequency range:
BULL TRUCKER 3000 W/SHAFT LED:
26.5 … 30 MHz Tunable
BULL TRUCKER 5000 W/SHAFT LED:
26.5 … 30 MHz Tunable
BULL TRUCKER 3000 COAX LED:
27 … 30 MHz Tunable
BULL TRUCKER 5000 COAX LED:
27 … 30 MHz Tunable
BULL TRUCKER 3000 PL LED:
27 … 30 MHz Tunable
BULL TRUCKER 5000 PL LED:
27 … 30 MHz Tunable
Systems: CB 27MHz, 10m-HAM
Bandwidth:
BULL TRUCKER 3000 W/SHAFT LED:
≥ 1.5MHz @ SWR ≤ 2
BULL TRUCKER 5000 W/SHAFT LED:
≥ 1.9MHz @ SWR ≤ 2
BULL TRUCKER 3000 COAX LED:
≥ 1.1MHz @ SWR ≤ 2
BULL TRUCKER 5000 COAX LED:
≥ 1.4MHz @ SWR ≤ 2
BULL TRUCKER 3000 PL LED:
≥ 1.1MHz @ SWR ≤ 2
BULL TRUCKER 5000 PL LED:
≥ 1.4MHz @ SWR ≤ 2
Max Power:
BULL TRUCKER 3000 W/SHAFT LED:
3500 W (ICAS)
BULL TRUCKER 5000 W/SHAFT LED:
5000 W (ICAS)
BULL TRUCKER 3000 COAX LED:
3500 W (ICAS)
BULL TRUCKER 5000 COAX LED:
5000 W (ICAS)
BULL TRUCKER 3000 PL LED:
3500 W (ICAS)
BULL TRUCKER 5000 PL LED:
5000 W (ICAS)
Cable lenght / type:
BULL TRUCKER 3000 W/SHAFT LED:
0 cm (0 in) / Not supplied
BULL TRUCKER 5000 W/SHAFT LED:
0 cm (0 in) / Not supplied
BULL TRUCKER 3000 COAX LED:
4 m (13.12 ft) / RG58
BULL TRUCKER 5000 COAX LED:
4 m (13.12 ft) / RG58
BULL TRUCKER 3000 PL LED:
0 cm (0 in) / Not supplied
BULL TRUCKER 5000 PL LED:
0 cm (0 in) / Not supplied
Connector:
BULL TRUCKER 3000 W/SHAFT LED:
3/8'' Thread
BULL TRUCKER 5000 W/SHAFT LED:
3/8'' Thread
BULL TRUCKER 3000 COAX LED:
Not supplied
BULL TRUCKER 5000 COAX LED:
Not supplied
BULL TRUCKER 3000 PL LED:
UHF-male (PL-259)
BULL TRUCKER 5000 PL LED:
UHF-male (PL-259)
Mechanical Data:
Materials: Aluminium, Chromed brass, Stainless Steel 17/7 PH, Thermoplastic UV stabilized, PCB
Height (approx):
BULL TRUCKER 3000 W/SHAFT LED:
1600 mm / 5.25 ft
BULL TRUCKER 5000 W/SHAFT LED:
1800 mm / 5.91 ft
BULL TRUCKER 3000 COAX LED:
1445 mm / 4.74 ft
BULL TRUCKER 5000 COAX LED:
1665 mm / 5.46 ft
BULL TRUCKER 3000 PL LED:
1445 mm / 4.74 ft
BULL TRUCKER 5000 PL LED:
1665 mm / 5.46 ft
Weight (approx):
BULL TRUCKER 3000 W/SHAFT LED:
440 gr / 0.97 lb
BULL TRUCKER 5000 W/SHAFT LED:
440 gr / 0.97 lb
BULL TRUCKER 3000 COAX LED:
400 gr / 0.88 lb
BULL TRUCKER 5000 COAX LED:
400 gr / 0.88 lb
BULL TRUCKER 3000 PL LED:
400 gr / 0.88 lb
BULL TRUCKER 5000 PL LED:
400 gr / 0.88 lb
Mounting type:
BULL TRUCKER 3000 W/SHAFT LED:
3/8'' Thread
BULL TRUCKER 5000 W/SHAFT LED:
3/8'' Thread
BULL TRUCKER 3000 COAX LED:
Thru-Hole
BULL TRUCKER 5000 COAX LED:
Thru-Hole
BULL TRUCKER 3000 PL LED:
On-Connector
BULL TRUCKER 5000 PL LED:
On-Connector
Suitable Accessories:
Cable: SO-239 Angular connector w/cable (P/N:2506105.00)
Cable: 4m/13ft RG303 HI-POWER Cable for NE-PL, Turbo and Performer - Max power up to 2000W (P/N:2509605.00)
Connector: UHF-male (PL-259) (P/N: 2505600.00)
Adaptor: CB-HDS 3/8-24 female / UHF-female (SO-239) (P/N:2508106.00)
