Product Number:

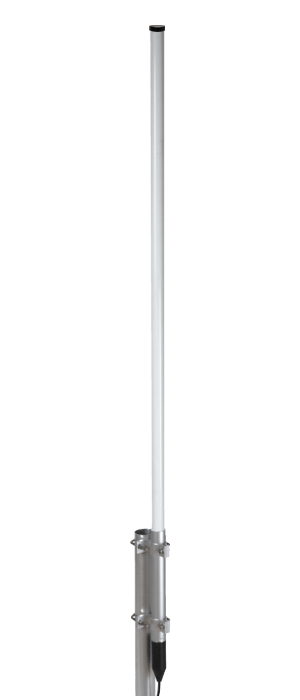

2115020/145	SPO-145-2

Electrical Data:
Type:	1/2 λ
Radiation:	Omnidirectional
Polarization:	Linear vertical
Frequency range:	145-175 MHz @ SWR ≤1.5 No tuning required
Systems:	2m-HAM, VHF Marine Band, ORBCOMM M2M, ISM-169MHz
Gain:	0 dBd – 2.15 dBi
Max Power:	100 W (CW)
Grounding protection:	DC-Ground
Connector:	N-female

Mechanical Data:
Materials:	Anodized Aluminium, Brass, Stainless steel, Fiberglass, EPDM rubber
Height (approx):	1380 mm / 4.53 ft
Weight (approx):	1315 gr / 2.9 lb

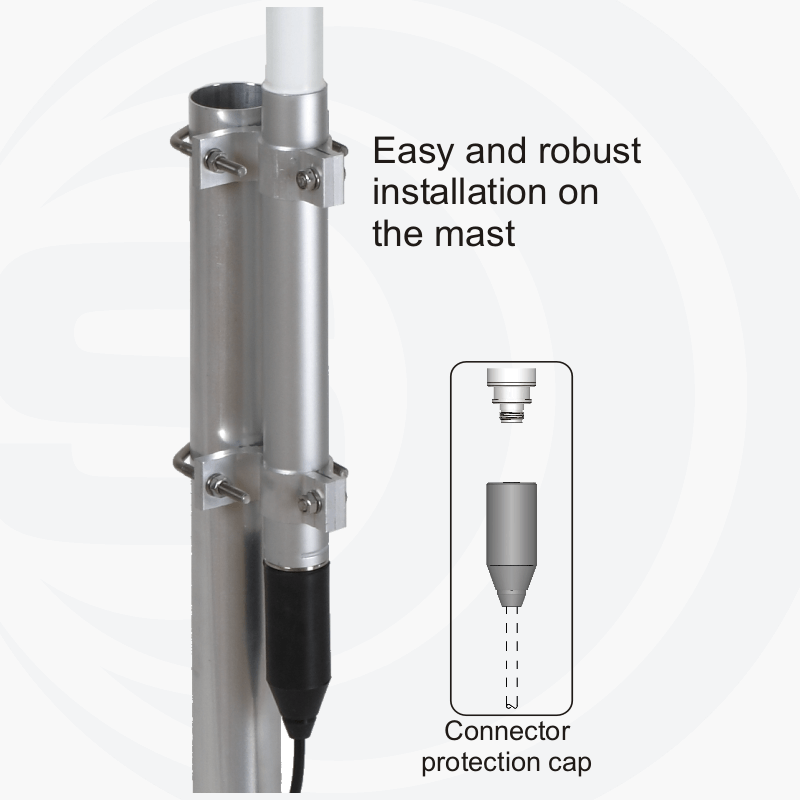

Mounting type:	On-Mast
