MADE IN ITALY since 1972

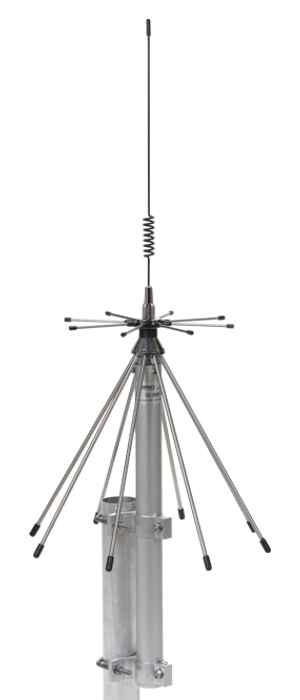

SD 3000 U / N

Extremely Wide-Band Suitable For Scanner Use

Product Number:
P/N: 2109205.00 SD 3000 U
P/N: 2109305.00 SD 3000 N
Electrical Data:
Type: Discone
Radiation: Omnidirectional
Polarization: Linear vertical
Frequency range: RX band: 300-3000 MHz
TX band (@ SWR ≤2): 340-535, 545-960, 1180-1380, 1660-1910, 1980-3000 MHz
Systems: 70cm-HAM, TETRA-350, CDMA-450, GSM-R, GSM-900, GSM-1800, 2G-GSM/GPRS/EDGE, 3G-UMTS, 4G-LTE, ISM-868MHz, ISM-915MHz, ISM-433MHz, WiFi-2.4GHz
Gain: 0 dBd – 2.15 dBi @ lowest frequency
Max Power: 200 Watts (CW) continuous

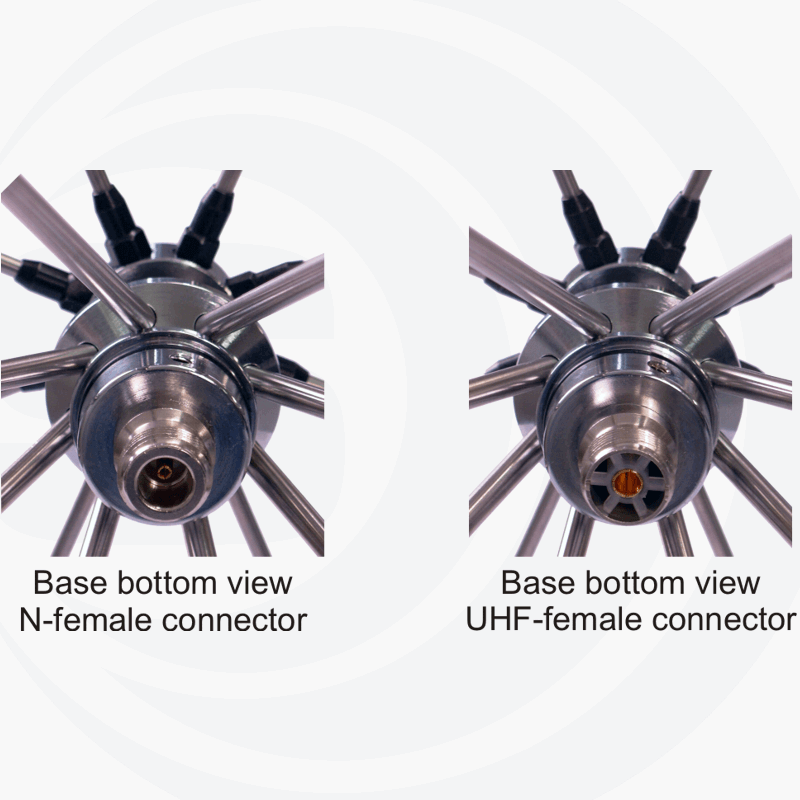

Connector:
SD 3000 U:
UHF-female (SO-239)
SD 3000 N:
N-female
Mechanical Data:
Materials: Chromed brass, Stainless steel, Nylon, Gold plated brass
Height (approx): 725 mm / 2.38 ft
Weight (approx): 830 gr / 1.83 lb
Mounting type: On-Mast
