MADE IN ITALY since 1972

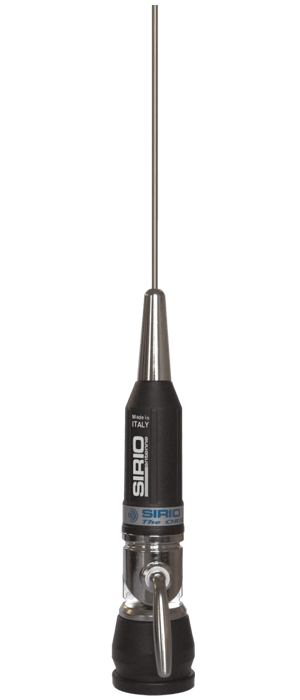

PERFORMER series


Product Number:
P/N: 2218005.50 PERFORMER P-600
Included:
Cable: 4m/13ft Cable for NE-PL, Turbo and Performer (P/N:2505905.00)
P/N: 2218005.51 PERFORMER P-600 PL
P/N: 2218105.50 PERFORMER P-800
Included:
Cable: 4m/13ft Cable for NE-PL, Turbo and Performer (P/N:2505905.00)
P/N: 2218105.51 PERFORMER P-800 PL
P/N: 2218205.50 PERFORMER P-1000
Included:
Cable: 4m/13ft Cable for NE-PL, Turbo and Performer (P/N:2505905.00)
P/N: 2218205.51 PERFORMER P-1000 PL
Electrical Data:
Type: Base loaded
Radiation: Omnidirectional
Polarization: Linear vertical
Frequency range: 27 … 28.5 MHz Tunable
Systems: CB 27MHz, 10m-HAM
Bandwidth:
PERFORMER P-600:
≥ 680KHz @ SWR ≤ 2
PERFORMER P-600 PL:
≥ 680KHz @ SWR ≤ 2
PERFORMER P-800:
≥ 1.4MHz @ SWR ≤ 2
PERFORMER P-800 PL:
≥ 1.4MHz @ SWR ≤ 2
PERFORMER P-1000:
≥ 2MHz @ SWR ≤ 2
PERFORMER P-1000 PL:
≥ 2MHz @ SWR ≤ 2
Max Power: 200 Watts (CW) continuous
1000 Watts (CW) short time
Grounding protection: DC-Ground
Cable lenght / type:
PERFORMER P-600:
4 m (13.12 ft) / RG58
PERFORMER P-600 PL:
Not supplied
PERFORMER P-800:
4 m (13.12 ft) / RG58
PERFORMER P-800 PL:
Not supplied
PERFORMER P-1000:
4 m (13.12 ft) / RG58
PERFORMER P-1000 PL:
Not supplied
Connector:
PERFORMER P-600:
Not supplied
PERFORMER P-600 PL:
UHF-male (PL-259)
PERFORMER P-800:
Not supplied
PERFORMER P-800 PL:
UHF-male (PL-259)
PERFORMER P-1000:
Not supplied
PERFORMER P-1000 PL:
UHF-male (PL-259)
Mechanical Data:
Materials: Copper, Brass, Stainless Steel 17/7 PH, Nylon
Height (approx):
PERFORMER P-600:
1250 mm / 4.1 ft
PERFORMER P-600 PL:
1250 mm / 4.1 ft
PERFORMER P-800:
1650 mm / 5.41 ft
PERFORMER P-800 PL:
1650 mm / 5.41 ft
PERFORMER P-1000:
1950 mm / 6.4 ft
PERFORMER P-1000 PL:
1950 mm / 6.4 ft
Weight (approx): 600 gr / 1.32 lb

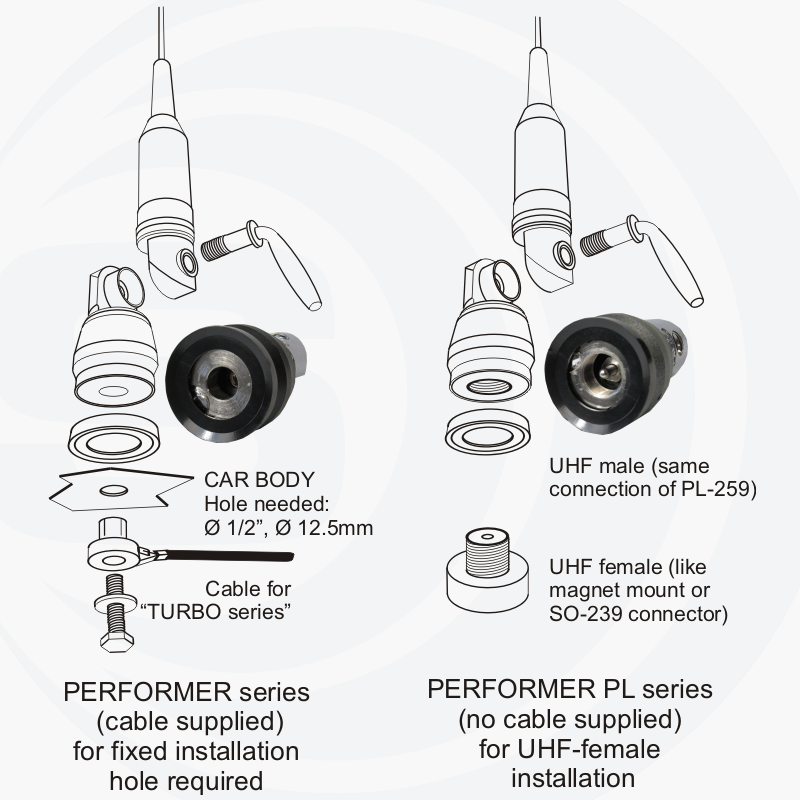

Mounting type:
PERFORMER P-600:
Thru-Hole
PERFORMER P-600 PL:
On-Connector
PERFORMER P-800:
Thru-Hole
PERFORMER P-800 PL:
On-Connector
PERFORMER P-1000:
Thru-Hole
PERFORMER P-1000 PL:
On-Connector
Suitable Accessories:
Magnetic Mount: PM 125 PL (P/N:2502602.05)
Magnetic Mount: MAG 145 PL (P/N:2502702.05)
Cable: SO-239 Angular connector w/cable (P/N:2506105.00)
Bracket: ABN-2 Trunk Mount (P/N:2504105.00)
Bracket: KF Gutter mount (P/N:2504205.00)
Bracket: Asp-1 Chrome (P/N:2504004.00)
Connector: UHF-male (PL-259) (P/N: 2505600.00)
