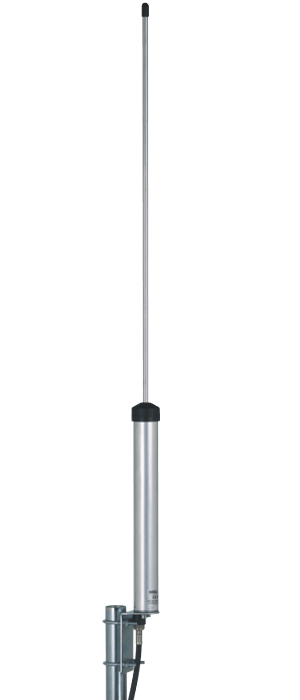

CX 2 m series

Product Number:
2107201.00 CX 140 U
2102201.00 CX 144 U
2103501.00 CX 148 U
2103901.00 CX 152 U
2102301.00 CX 156 U
2102401.00 CX 160 U
2103601.00 CX 164 U
2108401.00 CX 168 U
2104001.00 CX 172 U
Electrical Data:
Type: 3/4 λ coaxial J-pole
Radiation: Omnidirectional
Polarization: Linear vertical
Frequency range:
CX 140 U:
140 - 144 MHz @ SWR ≤ 1.5
CX 144 U:
144 - 148 MHz @ SWR ≤ 1.5
CX 148 U:
148 - 152 MHz @ SWR ≤ 1.5
CX 152 U:
152 - 156 MHz @ SWR ≤ 1.5
CX 156 U:
156 - 160 MHz @ SWR ≤ 1.5
CX 160 U:
160 - 164 MHz @ SWR ≤ 1.5
CX 164 U:
164 - 168 MHz @ SWR ≤ 1.5
CX 168 U:
168 - 172 MHz @ SWR ≤ 1.5
CX 172 U:
172 - 176 MHz @ SWR ≤ 1.5
Systems: 2m-HAM, VHF Marine Band, ORBCOMM M2M, AIS-162MHz, ISM-169MHz
Gain: 0 dBd – 2.15 dBi
Max Power: 250 W (CW)
Grounding protection: DC-Ground
Connector: UHF-female (SO-239)
Mechanical Data:
Materials: Aluminium, Brass, Galvanized steel, Zamak
Height (approx):
CX 140 U:
1660 mm / 5.45 ft
CX 144 U:
1620 mm / 5.31 ft
CX 148 U:
1580 mm / 5.18 ft
CX 152 U:
1535 mm / 5.04 ft
CX 156 U:
1500 mm / 4.92 ft
CX 160 U:
1460 mm / 4.79 ft
CX 164 U:
1430 mm / 4.69 ft
CX 168 U:
1395 mm / 4.58 ft
CX 172 U:
1370 mm / 4.49 ft
Weight (approx): 750 gr / 1.65 lb
Mounting type: On-Mast
