MADE IN ITALY since 1972

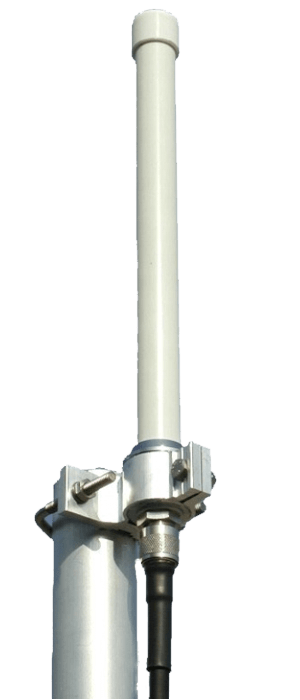

SCO-2.4-6


Product Number:
P/N: 2130220.00 SCO-2.4-6
Electrical Data:
Type: 3×1/2 λ colinear
Radiation: Omnidirectional
Polarization: Linear vertical
Frequency range: 2.3-2.5 GHz @ SWR ≤ 1.5 No tuning required
Systems: WiFi-2.4GHz
Gain: 3.9 dBd – 6 dBi
Max Power: 20 W (CW)
Grounding protection: DC-Ground
Connector: N-female
Mechanical Data:
Materials: Aluminium, Chromed brass, Fiberglass, PCB
Height (approx): 325 mm / 1.07 ft
Weight (approx): 350 gr / 0.77 lb
Mounting type: On-Mast
