Cables

Description	Connector (1)	Cable	Connector (2)

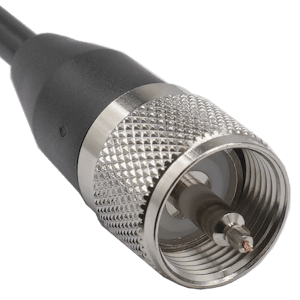

P/N:2506005.00 40cm RG58 Black UHF-Male (PL-259) / UHF-Male (PL-259) P/N:2504705.00 50cm RG58 Black UHF-Male (PL-259) / UHF-Male (PL-259) P/N:2504805.00 90cm RG58 Black UHF-Male (PL-259) / UHF-Male (PL-259)	+	+	+

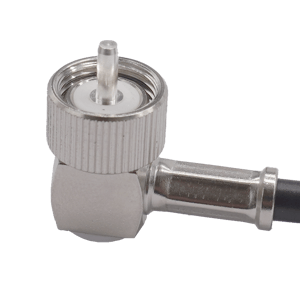

P/N:2513005.00 4m/13ft RG58 SG AC/U Angular connector	+	+	-
P/N:2506105.00 4m/13ft RG58 SO-239 Angular connector W/cable	+	+	-
P/N:2505705.00 4m/13ft RG58 Cable for N or N-PL mounts	+	+	-

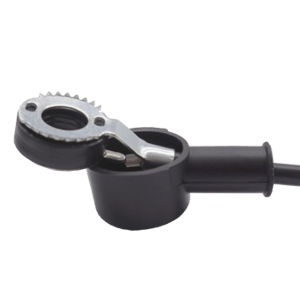

P/N:2505805.00 4m/13ft RG58 Cable for NE mount	+	+	-

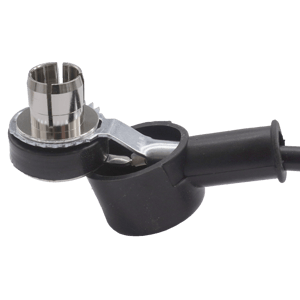

P/N:2505905.00 4m/13ft RG58 Cable for NE-PL, Turbo and Performer Max power Up to 300 W	+	+	-
P/N:2509605.00 4m/13ft RG303 PTFE Cable for NE-PL, Turbo and Performer Max power Up to 2000 W	+	+	-

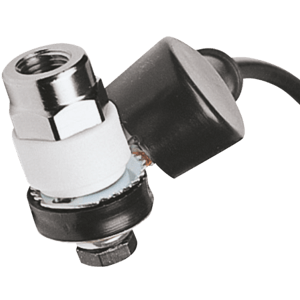

4m/13ft RG58 Cable for KF GUTTER SET 3/8	+	+	-

Description	Connector (1)	Cable	Connector (2)

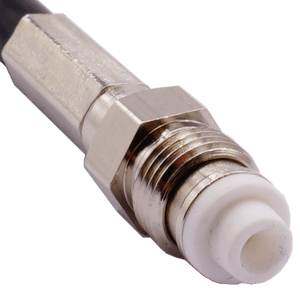

P/N: 2510305.00 0.5m RG58 Black FME-Female / FME-Female P/N: 2510405.00 1.5m RG58 Black FME-Female / FME-Female P/N: 2510505.00 3.5m RG58 Black FME-Female / FME-Female P/N: 2510705.00 4m RG58 Black FME-Female / FME-Female P/N: 2510605.00 5m RG58 Black FME-Female / FME-Female	+	+	+
P/N: 2509405.00 5m RG58 FME-Female / Open end	+	+	-

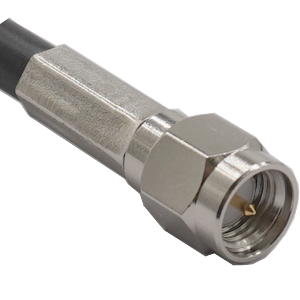

P/N: 2550906/5CO 5m LowLoss White SMA-Male / SMA-Male	+	+	+

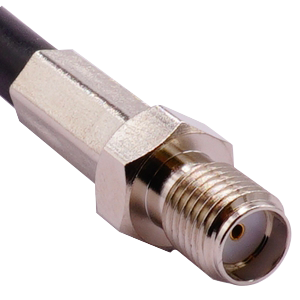

P/N: 2550106/5CO 5m LowLoss White SMA-Male / SMA-Female	+	+	+

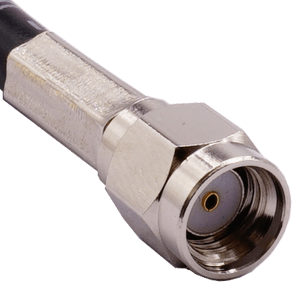

P/N: 2550506/5CO 5m LowLoss White SMA-Male / SMA-Male Reverse Polarity	+	+	+

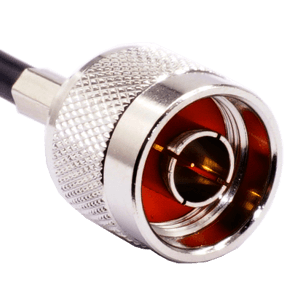

P/N: 2550706/5CO 5m LowLoss White SMA-Male / N-Male	+	+	+
P/N: 2550206/5CO 5m LowLoss White SMA-Male / FME-Female	+	+	+

Frequency	RG58	LowLoss	RG 174	RG 316/U
25 MHz	7 dB	5 dB	13 dB	12 dB
50 MHz	10 dB	7 dB	18 dB	17 dB
100 MHz	15 dB	10 dB	27 dB	26 dB
200 MHz	21 dB	14 dB	39 dB	38 dB
300 MHz	26 dB	17 dB	48 dB	47 dB
400 MHz	30 dB	20 dB	56 dB	52 dB
500 MHz	34 dB	23 dB	64 dB	55 dB
800 MHz	44 dB	29 dB	84 dB	80 dB
1 GHz	50 dB	33 dB	95 dB	91 dB
1.6 GHz	66 dB	42 dB	124 dB	118 dB
1.8 GHz	70 dB	45 dB	133 dB	126 dB
2 GHz	76 dB	48 dB	141 dB	134 dB
2.2 GHz	78 dB	50 dB	150 dB	141 dB
2.4 GHz	86 dB	53 dB	159 dB	149 dB
2.5 GHz	87 dB	54 dB	162 dB	152 dB
3 GHz	60 dB	54 dB	184 dB	169 dB
