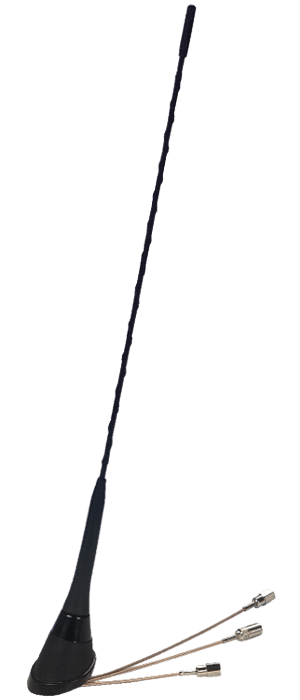

TRIFLEX CB / AM-FM / GSM 900

Product Number:
2216215.00 TRIFLEX CB / AM-FM / GSM 900 no extension cables

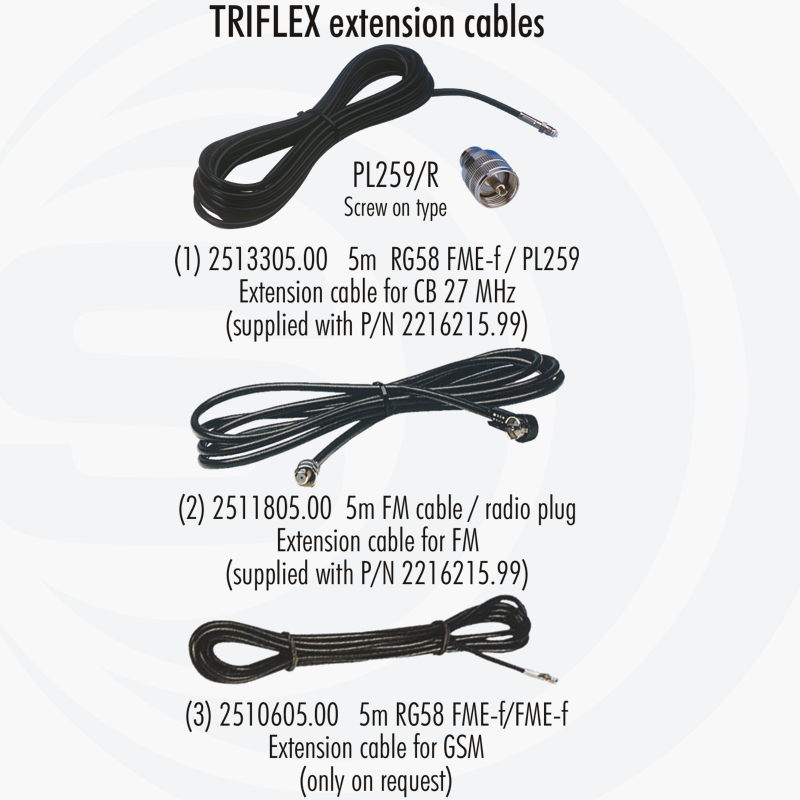

2216215.99 TRIFLEX CB / AM-FM / GSM 900 w/cables CB (1) & FM (2)
Electrical Data:
Type: CB 27MHz band: 1/4 λ central loaded
FM band: 1/4 λ helical loaded
GSM 900MHz band: 1/4 λ
Radiation: Omnidirectional
Polarization: Linear vertical

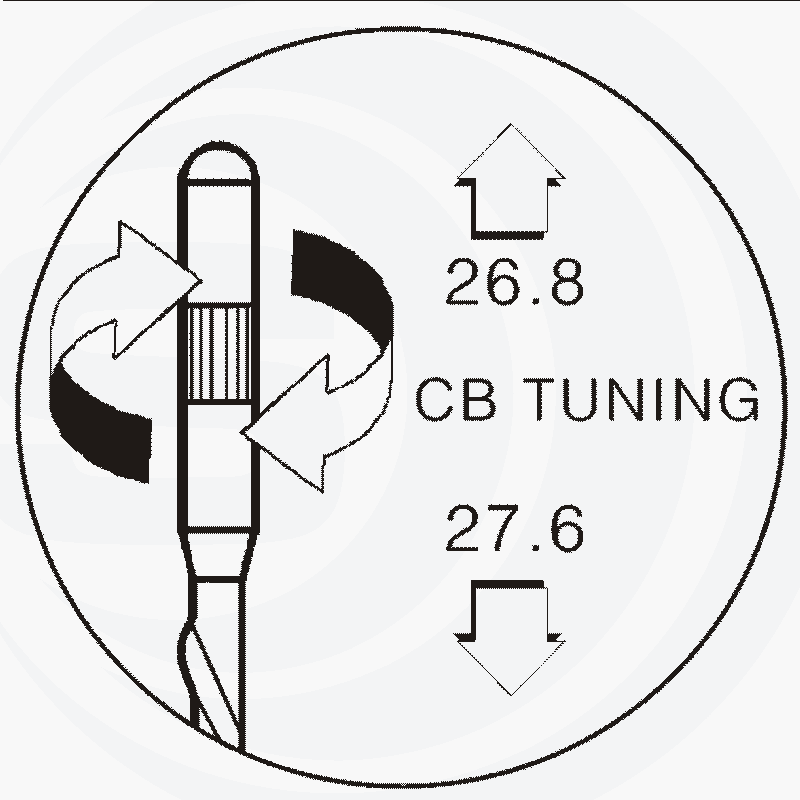

Frequency range: CB 27MHz band: 26.8 .. 27.6 MHz
AM-FM band: AM 0.15-1.6 MHz FM 87.5-108 MHz
GSM 900MHz band: TX 880-915 MHz, RX 935-960 MHz
Systems: CB 27MHz, GSM-900, AM, FM
Gain: 0 dB ref. to a λ/4 whip
Max Power: CB 27MHz band: 10 Watts
GSM 900MHz band: 20 Watts
Bandwidth @ SWR ≤ 2: CB 27MHz band: ≥ 440 KHz (40 channel)
GSM 900MHz band: ≥ 100 MHz
Cable lenght / Type / Connector: CB 27MHz band: 215 mm ( 0.71 ft ) / RG316 / FME-male
AM-FM band: 165 mm ( 0.54 ft ) / RG316 / M10x0.75-male
GSM 900MHz: 120 mm (0.39 ft) / RG316 / FME-male
Mechanical Data:
Materials: Aluminium, Copper, Chromed brass, Nylon
Height (approx): 500 mm / 1.64 ft
Weight (approx): 120 gr / 0.26 lb
Mounting type: Thru-Hole
